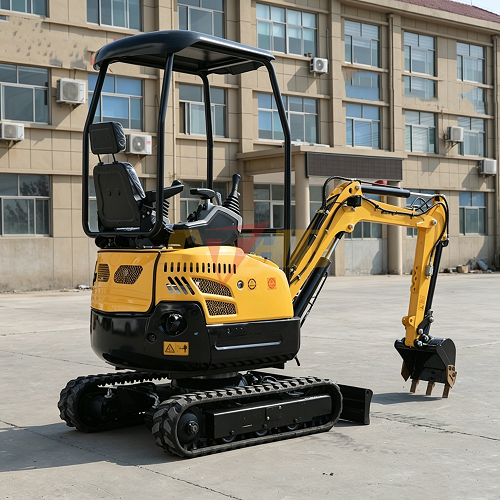

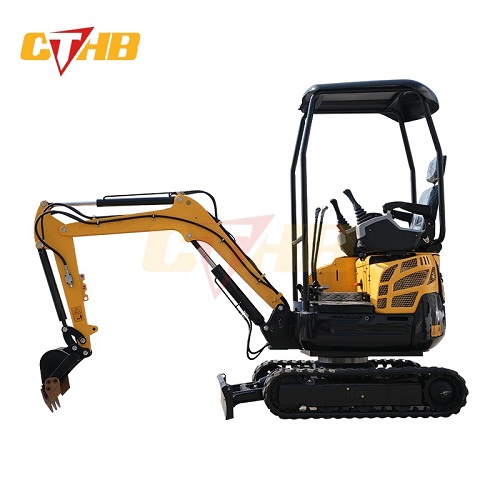

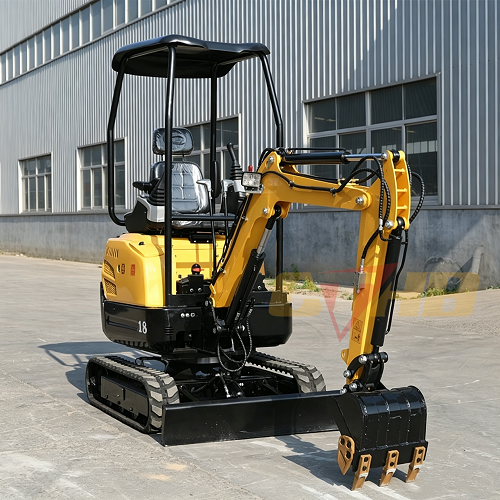

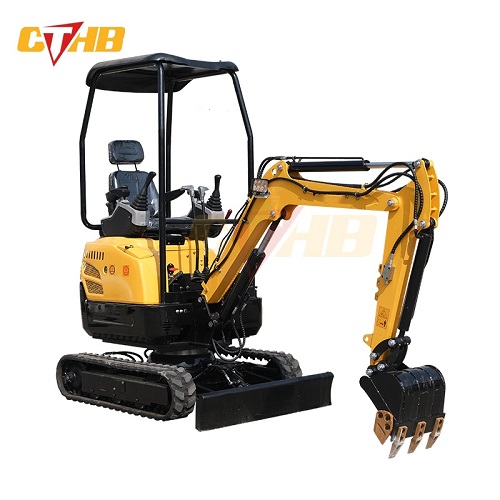

CTHB 1.5ton Mini Excavator Built With Yanmer Euro V Engine

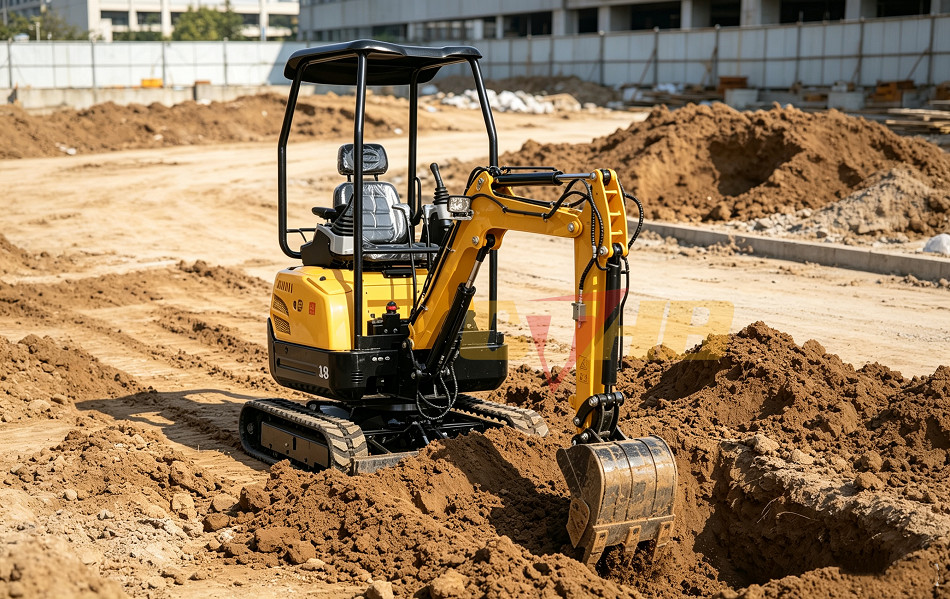

“Minimal Tail-Swing” is the mainstream compact design for mini excavator; the counterweight extends minimally beyond the track width during rotation (short-tail design). Featuring an expandable undercarriage and a boom swing function, these machines are purpose-built for confined work sites and serve as the standard choice for municipal projects, landscaping, and indoor renovation work.
Small in size, massive in power!
Specification
| Basic performance parameters | Working weight (kg) | 1500 |
| Bucket capacity（m³） | 0.05 | |
| Travel speed low/high（km/h) | 3.5 | |
| Climbing capacity(°) | 30 | |
| Arm digging force (KN) | 12 | |
| Maximum excavation force(KN) | 18 | |
| Emissions Tier Option | EPA /Euro 5 /Tier 2/Tier 4 | |
| Max dig depth (mm) | 2200 | |
| Max excavation height (mm) | 3200 | |
| Max dump height (mm) | 2300 | |
| Max reach at ground level (m） | 2 | |
| Body | Transportation length (mm) | 3250 |
| Transport width (mm) | 1100 | |
| Transport height (mm) | 2300 | |
| Trace ground length (mm) | 1300 | |
| Trace width (mm) | 230 | |
| Fuel tank (L) | 20 | |
| Oil capacity (L) | 1.65 | |
| Auxiliary oil pressure (MPA) | 16 | |
| Engine | Engine brand | Yammer/Kubota (Euro 5/ EPA |
| Engine model | Kubota | |
| Max governed RPM (rpm) | 3000 | |
| Rated power (Kw) | 7.6 | |
| Maximum speed (rpm) | 3600 | |
| Displacement (L) | 0.719 | |
| Horse power (HP) | 20.3 | |
| Cooling method | Water Cooling | |
| Rated Power (KW) | 19 | |
| Fuel form | Diesel fuel | |
| Engine type | Three-Cylinder Four-Stroke Vertical Engine |
*This specification may be changed without notice for performance improvement.
*Customization available.
Key Features and Benefits
- Unmatched Maneuverability: Minimal tail swing + retractable undercarriage + offset boom for tight-space operation.
- Low Site Damage & Higher Safety.
- Multi-Attachment Versatility: Standard auxiliary hydraulic circuits.
- Low Emission & Low Noise: Suitable for residential and indoor working environments.
- Cost-Efficient Transport and Maintenance.
