Concrete Mixing Bucket for Loader

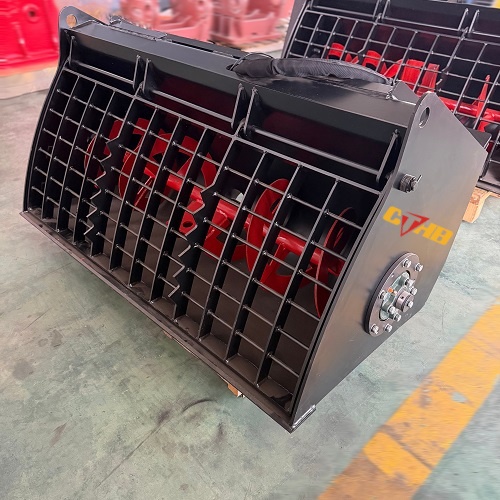

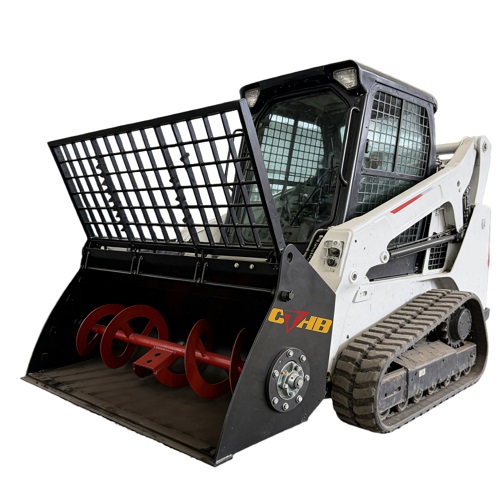

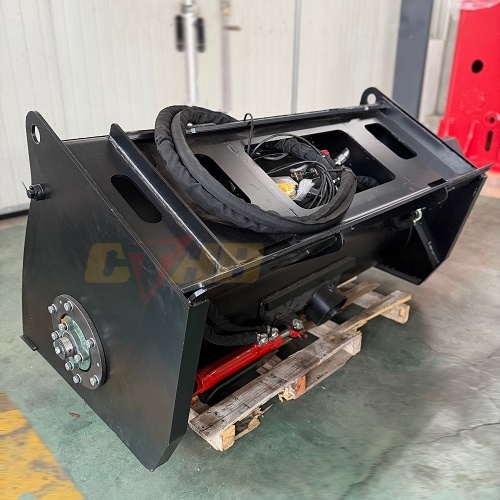

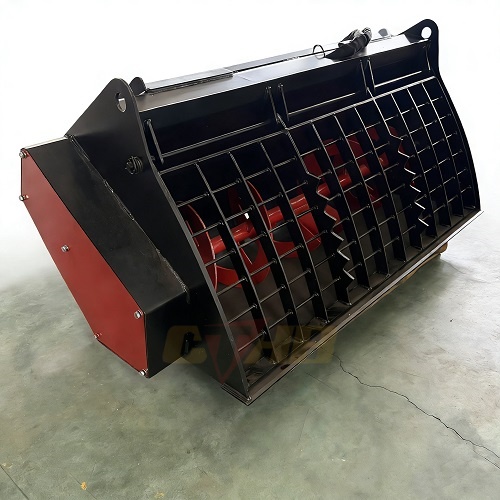

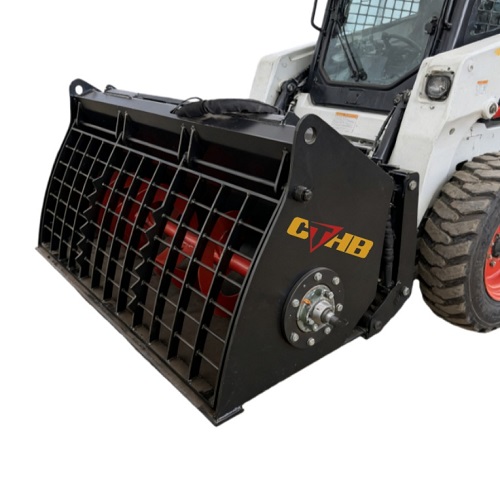

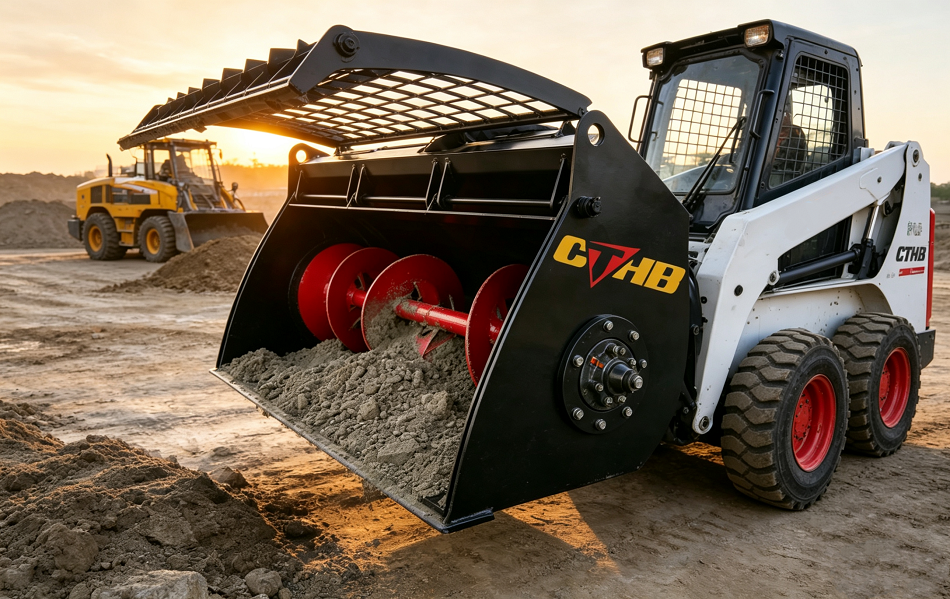

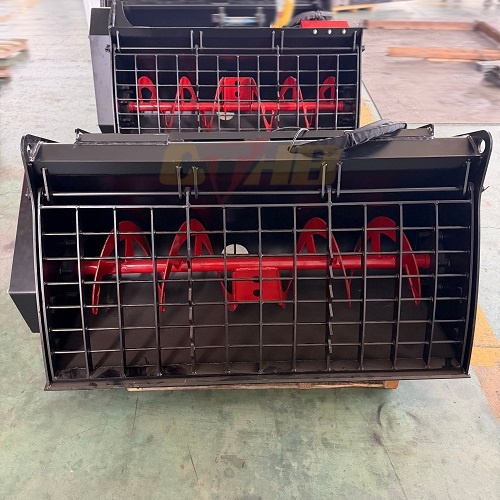

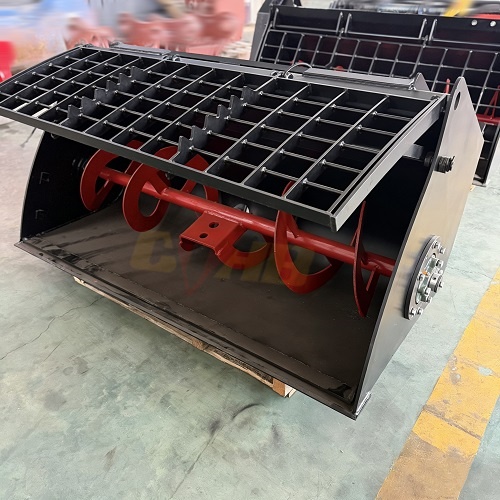

CTHB concrete mixing bucket is an attachment mounted on a loader (such as a skid steer loader or excavator). It scoops aggregates directly from the stockpile using the bucket edge and is powered by the hydraulic system of an excavator or loader. Special spiral blades on a central rotating shaft vigorously agitate the materials, producing a uniform concrete mix within minutes.

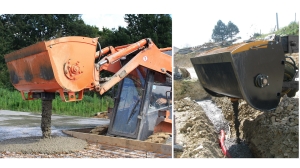

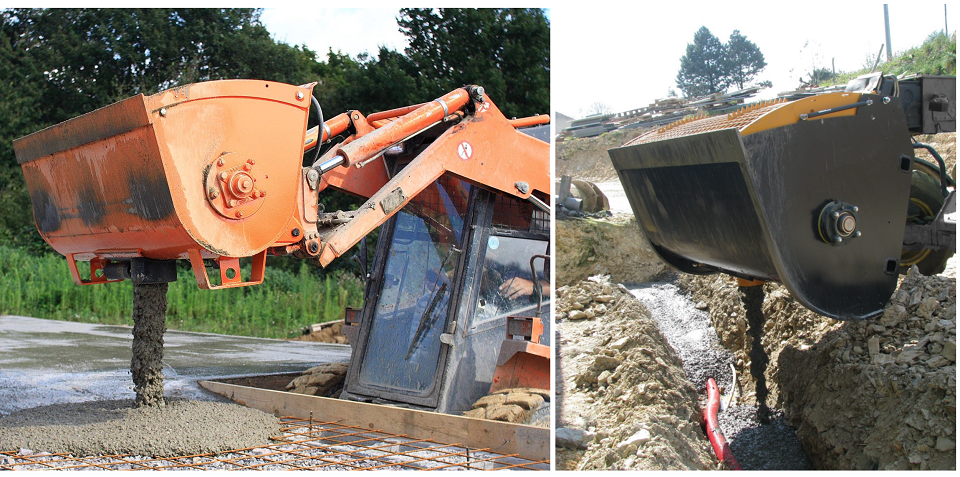

Typically equipped with a hydraulically operated gate and a discharge chute, it allows for the direct pouring of concrete into a designated location.It allows for quick and efficient mixing of concrete, mortar, asphalt, and other materials, even in challenging terrain.
Thanks to the special design of the propeller blades, the materials are perfectly mixed. The hydraulic drive ensures uniform mixing, making it more convenient than traditional methods.
It is commonly used in construction sites, landscaping, and road maintenance.Multi-functional integration: mixing, transporting, and pouring, eliminating the need for multiple pieces of equipment and processes.
Powerful performance and uniform mixing deliver high-quality concrete.
Core technology, super mixing power, faster and smoother material discharge.
Specification
|
Model
|
S210 01
|
S210 02
|
|
Capacity（m3）
|
0.35
|
0.65
|
|

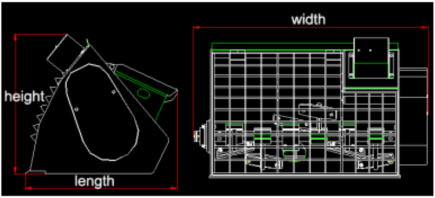

Overall Length（mm）
|
1130
|
1130
|
|
Overall Width（mm）
|
1650
|
1750
|
|
Overall Height（mm）
|
870
|
1045
|
|
Overall Weight（kg）
|
435
|
600
|
|
pressure（Mpa）
|
16～21
|
16～21
|
|
Working speed（r/min)
|
90-150
|
90-150
|
|
Working flow（L/Min)
|
75～140
|
75～140
|
*This specification may be changed without notice for performance improvement.
*Customization available.
Key Features and Benefits
*Low cost of concrete production
*Precise discharge of concrete via a flexible discharge hose
*Perfect mixing of the concrete mixture *Powerful hydraulic engine
*Using wear-resistant steel spiral blades ensures uniform concrete mixing
