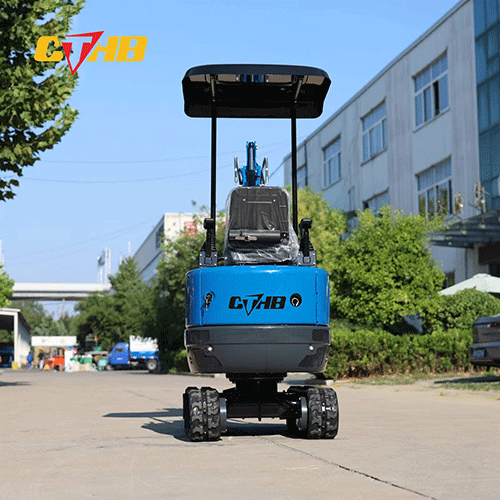

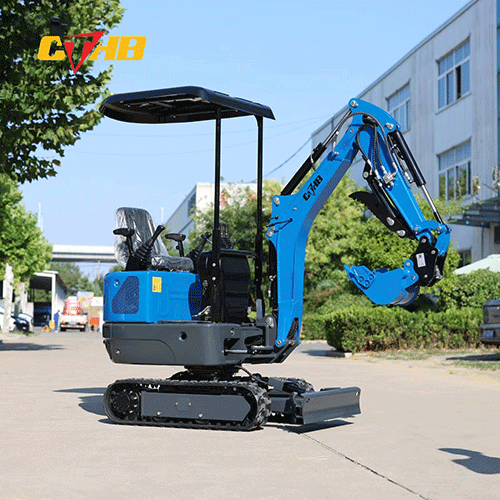

CTHB ME10-5

CTHB Compact Excavators, also known as mini excavators, are

We accept customerization

Specification

Basic performance parameters Working weight (kg) 896
Bucket capacity 0.014
Walking speed low/highkm/h) 0-1.8
Climbing ability(%) 30
Ground specific voltage (Kpa) 25.53
Maximum excavation force(kN) 9.2
Maximum excavation radius (mm) 3233
Maximum excavation depth (mm) 1825
Maximum excavation height (mm) 3027
Maximum unloading height (mm) 2255
Maximum deflection angle (° 119
Body Transportation length (mm) 2430
Transport width (mm) 916
Transport height (mm) 2209
Ground clearance of counterweight (mm) 369
Bucket width (mm) 300
Boom length (mm) 1477
Stick length (mm) 800
Bulldozing board width (mm) 885
Engine Engine brand Yoop
Engine model 192F
Maximum horsepower (ps) 10.4
Maximum power (Kw) 7.5
Maximum speed (rpm) 3000
Displacement (L) 0.499
Number of cylinders 1
Cooling method Air-cooled
Engine oil change quantity(L) 1.2
Fuel form Diesel fuel
Theoretical fuel consumption (L/h) 0.8-1.2

*This specification may be changed without notice for performance improvement.
*Customization available.

Key Features and Benefits
  • Boom Arm Side Swing;
  • Large Lifting Force, Larger Digging Range;
  • Thickened new tracks are wear-resistant, durability to meet different working environment;
