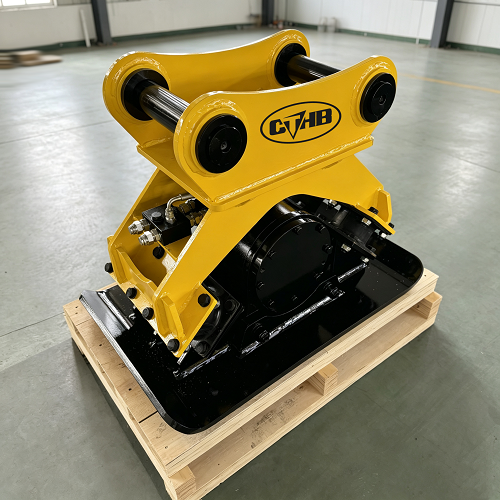

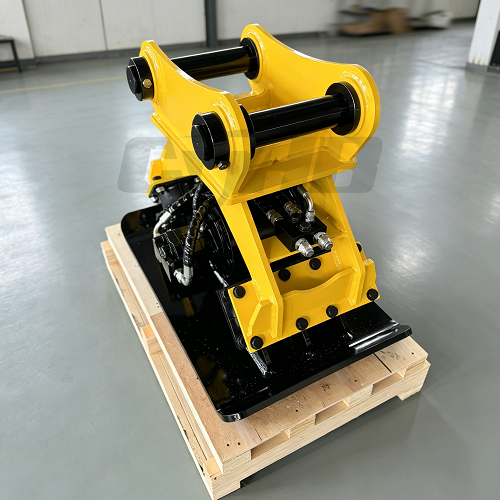

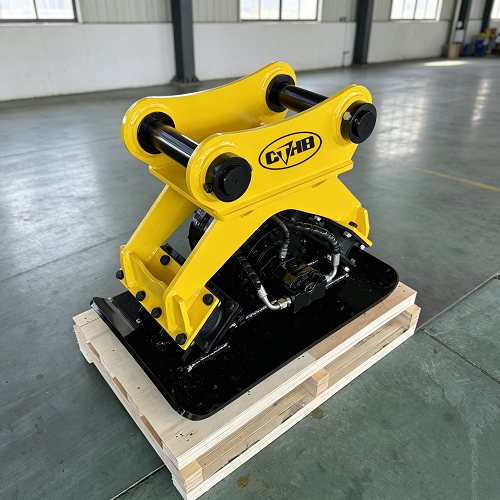

Excavator Hydraulic Compactor
CTHB excavator hydraulic compactor is a compaction equipment for excavators. It is majorly made of a hydraulic PERMCO motor, valve, eccentric shaft, rubber damper, and shell made by welding. The working principle is the motor driving the eccentric shaft to generate eccentric force, as the plate welds with the eccentric shaft, the compactor starts to vibrate and compact the soil.
CTHB produces hydraulic soil compactors for excavators, mini excavators, and skid steer loaders.
Excavator vibratory compactor is one of the compaction attachments that is specially used for compacting soil, gravel, or other materials during construction and earthwork projects….
“Compact with Impact!”
Specification
| Category | Unit | HC01 | HC04 | HC06 | HC08 | HC10 |
| Fit to Excavator | ton | 1-4 | 5-9 | 12-16 | 18-26 | 27-35 |
| Height | mm | 600 | 760 | 920 | 1060 | 1100 |
| Width | mm | 415 | 550 | 700 | 900 | 900 |
| Impulse Force | ton | 3 | 4 | 6.5 | 13 | 15 |
| Vibration Frequency | rpm | 2000 | 2000 | 2000 | 2000-2200 | 2000-2200 |
| Oil Flow | l/min | 25-35 | 45-75 | 85-105 | 120-170 | 120-170 |
| Operation Pressure | kg/cm² | 100-130 | 100-130 | 100-130 | 150-200 | 150-200 |
| Bottom Measurement | （L*W)mm | 800*420 | 900*550 | 1160*700 | 1350*900 | 1500*1000 |
| Compactor Weight | kg | 180-220 | 200-350 | 650-750 | 900-1000 | 1100-1300 |
| Category | Unit | CTHB01HC | CTHB04HC | CTHB06HC | CTHB08HC | CTHB10HC |
| Fit to Excavator | lbs | 2,200-8,820 | 11,050-19,840 | 26,455-35,280 | 39,685-57,320 | 59,525-77,160 |
| Height | inch | 24 | 30 | 36 | 42 | 43 |
| Width | inch | 16 | 22 | 28 | 35 | 35 |
| Impulse Force | ton | 3 | 4 | 6.5 | 13 | 15 |
| Vibration Frequency | rpm | 2000 | 2000 | 2000 | 2000-2200 | 2000-2200 |
| Oil Flow | gal/min | 6.6-9.5 | 12-20 | 22-28 | 32-45 | 32-45 |
| Operation Pressure | psi | 1,422-1,850 | 1,422-1,850 | 1,422-1,850 | 2,134-2,845 | 2,134-2,845 |
| Bottom Measurement | （L*W) inch | 31*17 | 35*22 | 46*28 | 53*35 | 59*39 |
| Compactor Weight | lbs | 397-485 | 440-770 | 1,433-1,653 | 1,984-2,204 | 2,425-2,866 |
*This specification may be changed without notice for performance improvement.
*Customization available.
- PERMCO hydraulic motor: works faster and more productively than regular plate compactors.
- Ignore terrain: CTHB compactor can work on steep slopes, rough terrain, and next to obstructions.
- Various adaptors are an option: to our customers’ demands, we can customize the adaptor type, including, 360-degree rotation, split top mounted, and flat plate on the top.
- Wear-resistant and high-hardness base plate to prevent damage from hard stones during vibration.
