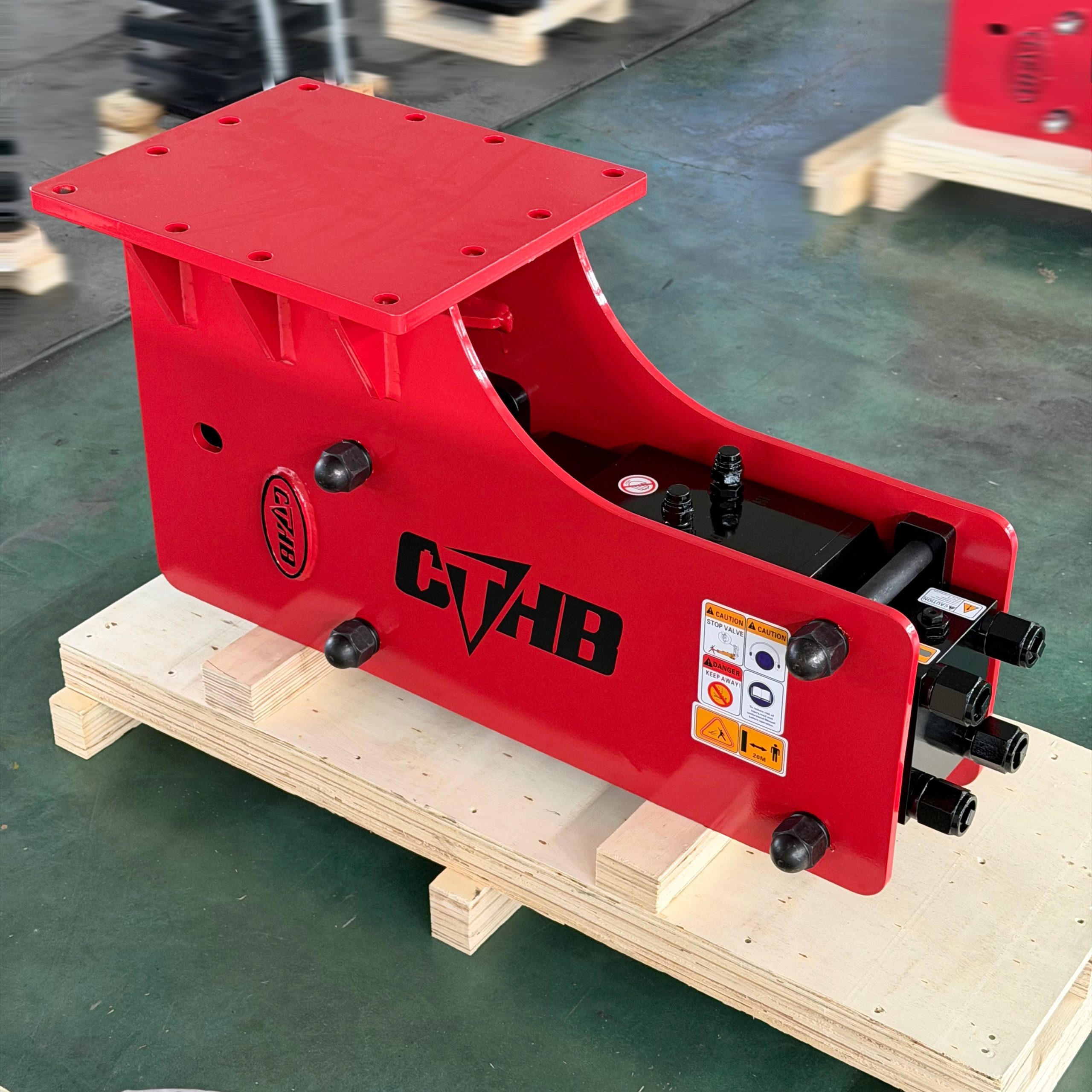

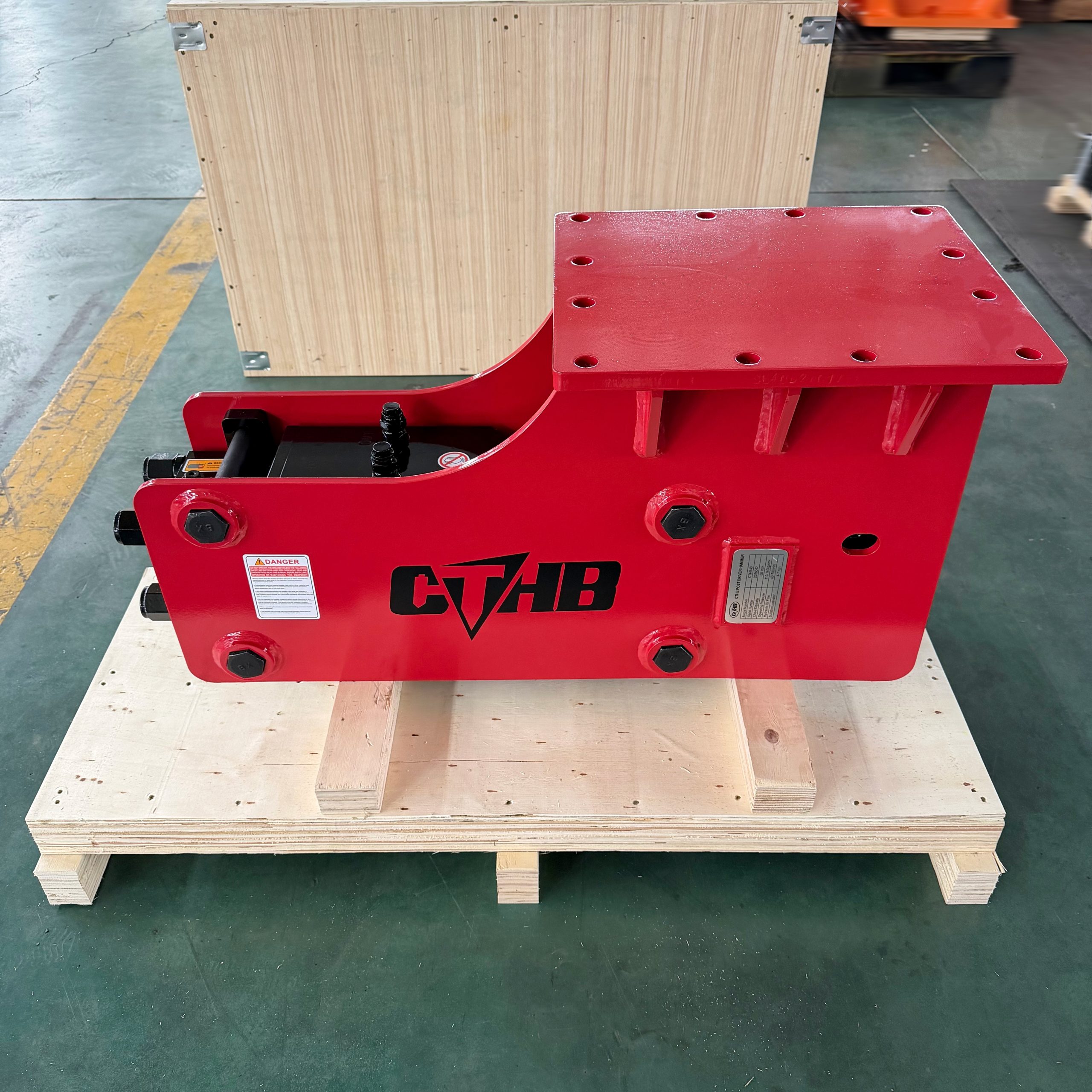

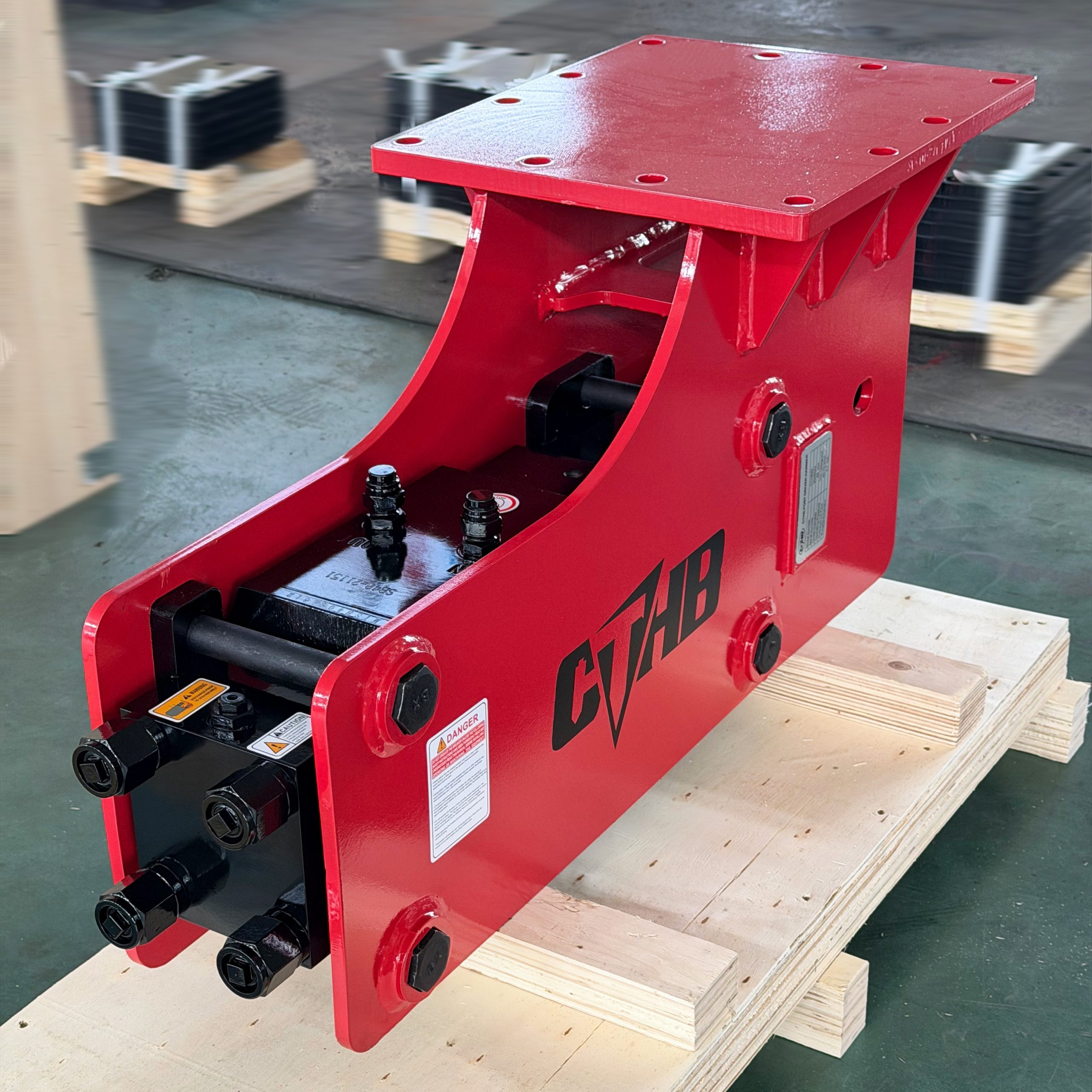

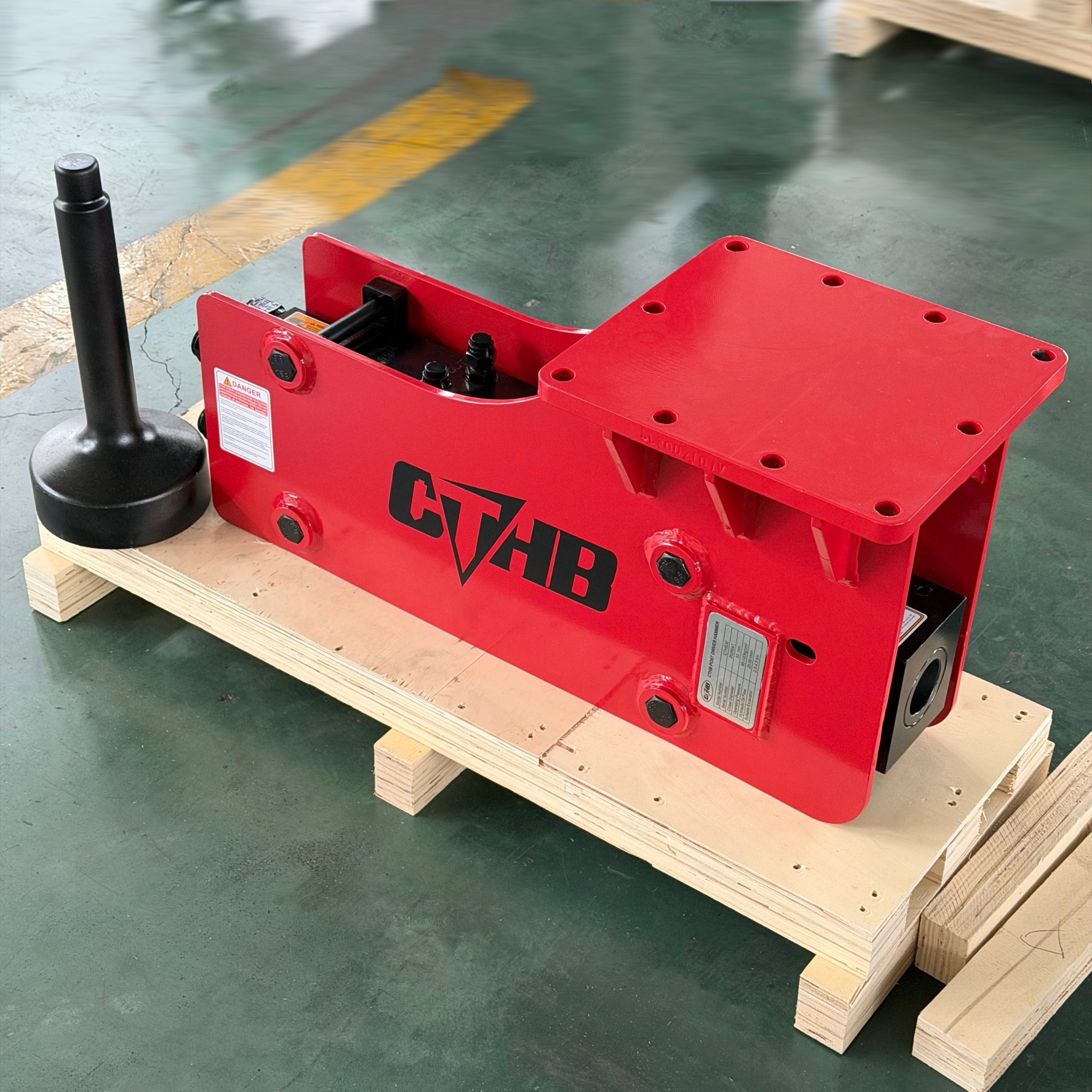

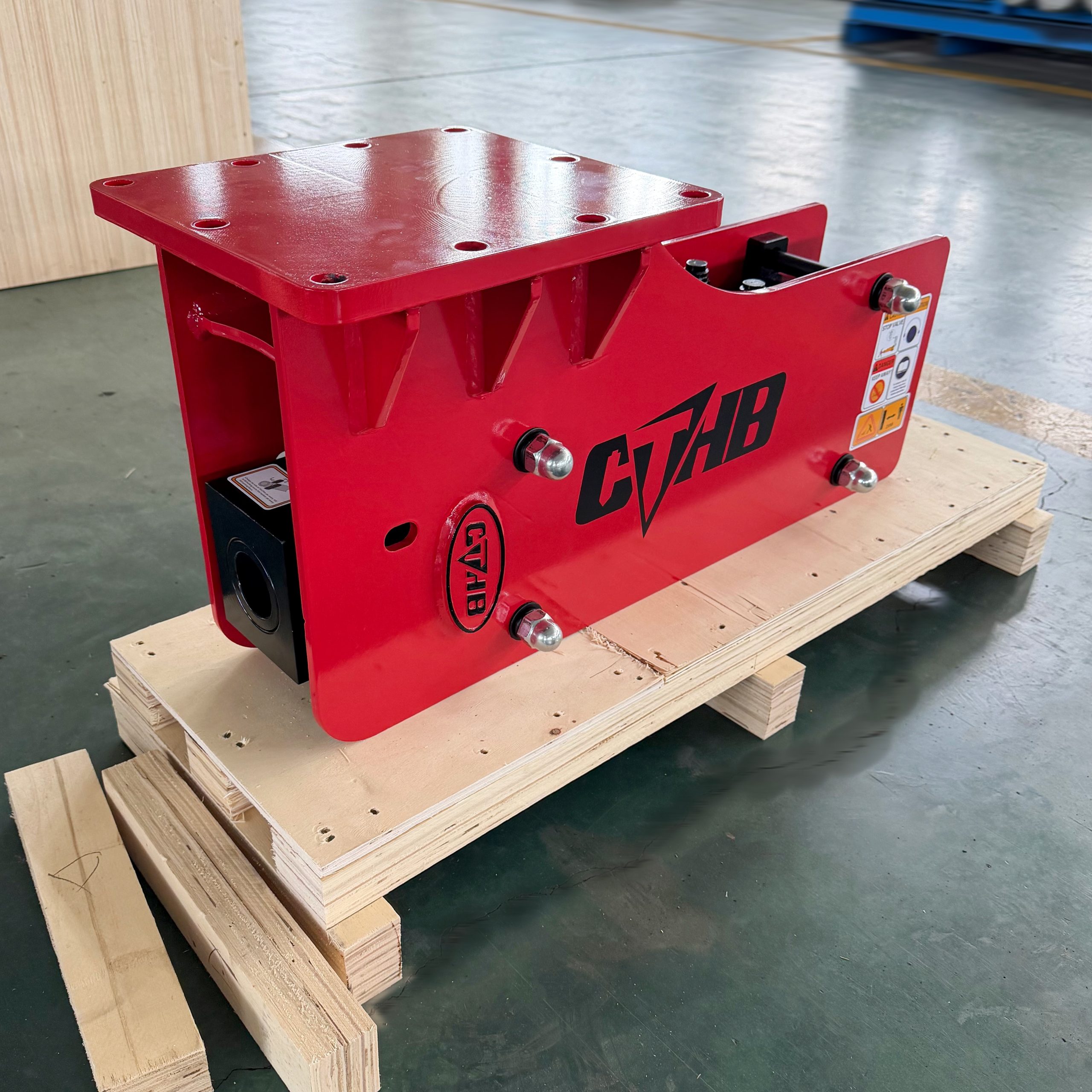

CTHB Excavator Plate Type Post Driver Hammer
CTHB Excavator hydraulic post driver hammer is high-efficiency hydraulic attachments that use a hydraulic system to quickly drive and install columns and piles. By switching to specialized piling or breaking chisels, an excavator can be made multi-purpose.
They are suitable for projects such as fencing, agriculture, and construction, offering high impact force, low maintenance, and versatile operational capabilities, and are suitable for piles of various shapes and sizes.

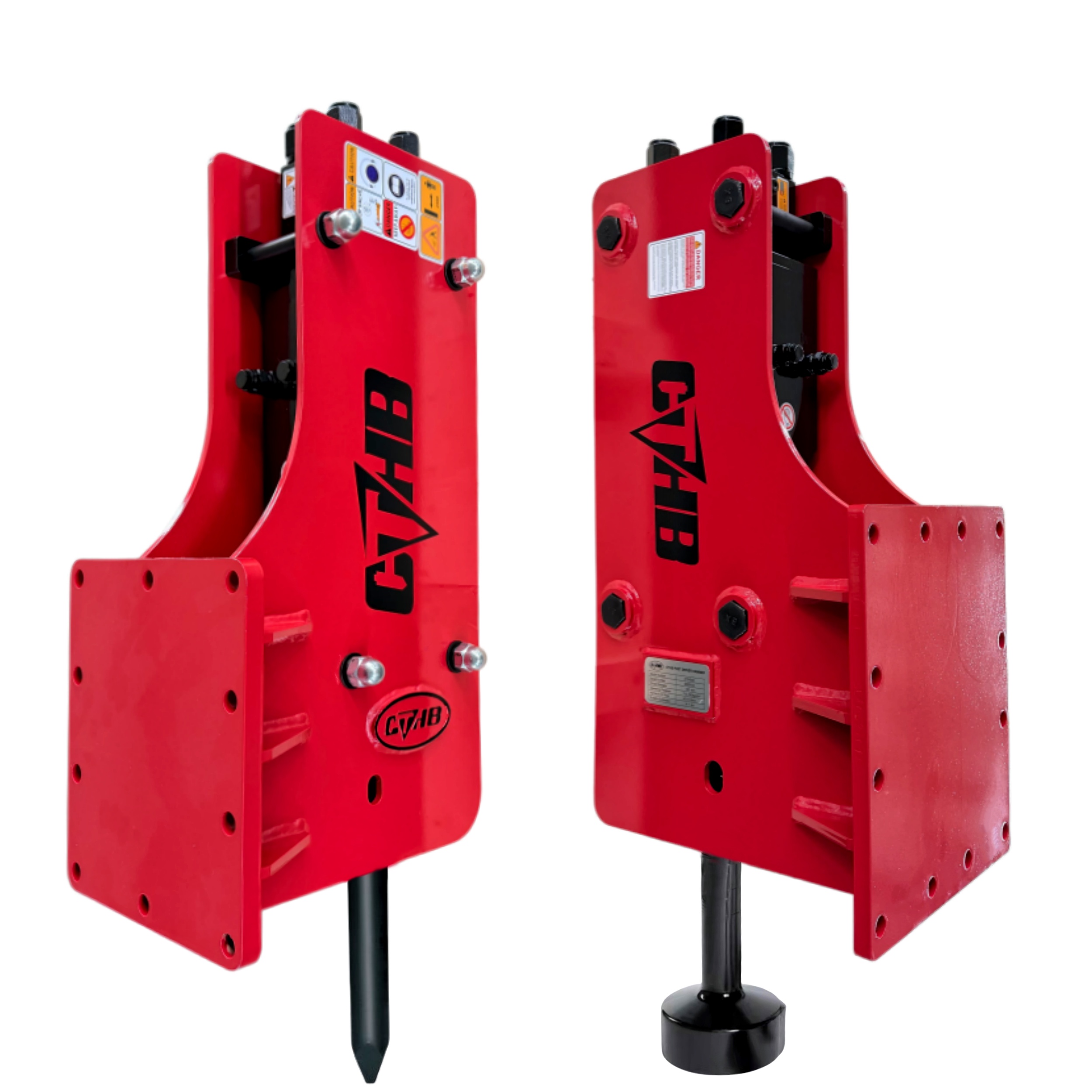

It can also be used for breaking (demolition).After replacing the chisel, it can be used as a standard hydraulic breaker.Suitable for excavators of various tonnages, ideal for rock breaking, concrete demolition, road construction and mining.
High-quality post driver feature advanced hydraulic systems, offering versatility and easily handling various pile types.
Specification
| Model No. | Chisel Diameter | Suitable Excavator | Hammer Weight | Operating Pressure | Operating Oil Flow | Blow Frequency | Oil Hose Diameter | Breaking Power | Back Cylinder N2 Gas Pressure |
| mm | Ton | kg | ㎏/㎠ | L/min | bpm | inch | kJ | bar | |
| CTHB05 | 35 | 0.5-1 | 72 | 90-120 | 15-25 | 800-1450 | 1/2 | 0.134 | 14-17 |
| CTHB10 | 40 | 0.8-2.5 | 90 | 90-120 | 15-25 | 800-1450 | 1/2 | 0.259 | 14-17 |
| CTHB20 | 45 | 1.2-3.0 | 120 | 90-120 | 20-30 | 700-1200 | 1/2 | 0.356 | 14-17 |
| CTHB30 | 53 | 2.5-4.5 | 150 | 90-120 | 25-50 | 600-1100 | 1/2 | 0.475 | 14-17 |
| CTHB35 | 60 | 2–5 | 221 | 90-120 | 25-50 | 600-1100 | 1/2 | 0.575 | 14-17 |
| CTHB40 | 68 | 4–7 | 253 | 110-140 | 40-70 | 500-900 | 1/2 | 0.661 | 14-17 |
| CTHB43 | 75 | 6–9 | 352 | 120-150 | 50-90 | 400-800 | 1/2 | 0.756 | 14-17 |
| CTHB45 | 85 | 7–14 | 587 | 130-160 | 60-100 | 400-800 | 3/4 | 0.935 | 14-17 |
| CTHB50 | 100 | 10–15 | 815 | 150-170 | 80-110 | 350-700 | 3/4 | 1.564 | 14-17 |
| Model No. | Chisel Diameter | Suitable Excavator | Hammer Weight | Operating Pressure | Operating Oil Flow | Blow Frequency | Oil Hose Diameter | Breaking Power | Back Cylinder N2 Gas Pressure |
| in | lbs | lbs | psi | gal/min | bpm | inch | kJ | psi | |
| CTHB05 | 1.4 | 1,100~2,200 | 159 | 1,280~1,707 | 4-8 | 800-1450 | 1/2 | 0.134 | 203-247 |
| CTHB10 | 1.6 | 1,760~5,500 | 198 | 1,280~1,707 | 4-8 | 800-1450 | 1/2 | 0.259 | 203-247 |
| CTHB20 | 1.8 | 2,600~6,600 | 265 | 1,280~1,707 | 4-8 | 700-1200 | 1/2 | 0.356 | 203-247 |
| CTHB30 | 2.1 | 5,500~9,900 | 330 | 1,280~1,707 | 6.6~13.2 | 600-1100 | 1/2 | 0.475 | 203-247 |
| CTHB35 | 2.4 | 6,600~12,000 | 487 | 1,280~1,707 | 6.6~13.2 | 600-1100 | 1/2 | 0.575 | 203-247 |
| CTHB40 | 2.7 | 8,800~16,000 | 558 | 1,565~1,991 | 10.6~18.5 | 500-900 | 1/2 | 0.661 | 203-247 |
| CTHB43 | 3.0 | 13,300~20,000 | 776 | 1,707~2,134 | 13.2~23.8 | 400-800 | 1/2 | 0.756 | 203-247 |
| CTHB45 | 3.3 | 15,500~31,000 | 1,294 | 1,707~2,134 | 13.2~23.8 | 400-800 | 3/4 | 0.935 | 203-247 |
| CTHB50 | 3.9 | 24,500~36,000 | 1,797 | 2,134-2,418 | 21.1-29.1 | 350-700 | 3/4 | 1.564 | 203-247 |
*This specification may be changed without notice for performance improvement.
*Customization available.
* Excellent for knocking posts (wooden or metal) into the ground.

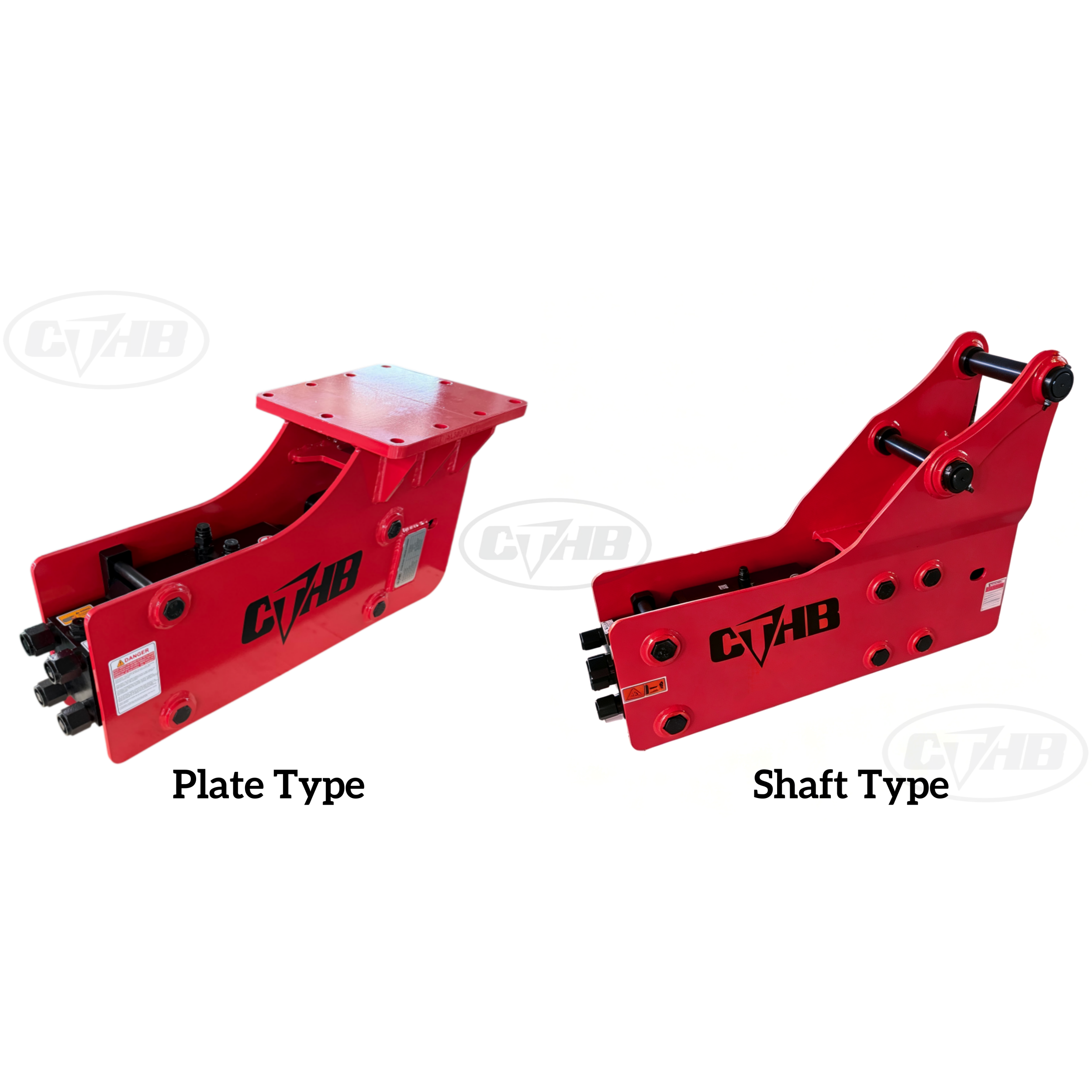

* Dual mounting for a multi purpose tool.
* Easily controlled, the main body is designed only to produce vertical impact power instead of vibration power.
* Would certainly remove back-breaking work and enable you to put in fencing much quicker with better efficiency.
* They’re fantastic for farmers,beach, steel erectors, construction and anywhere that requires posts.
