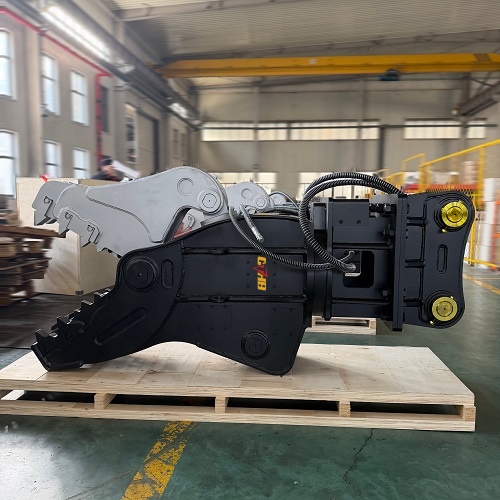

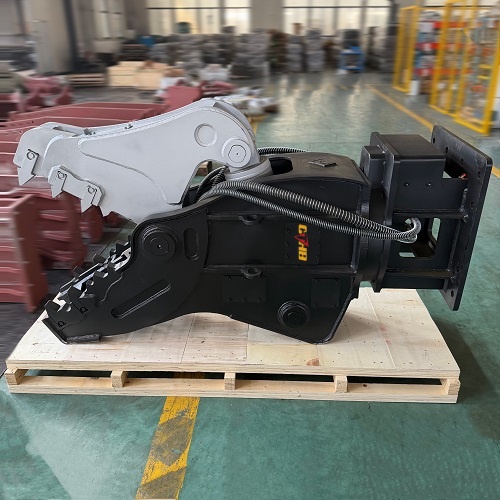

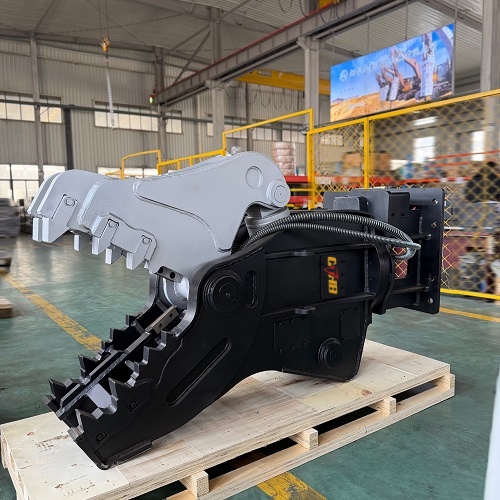

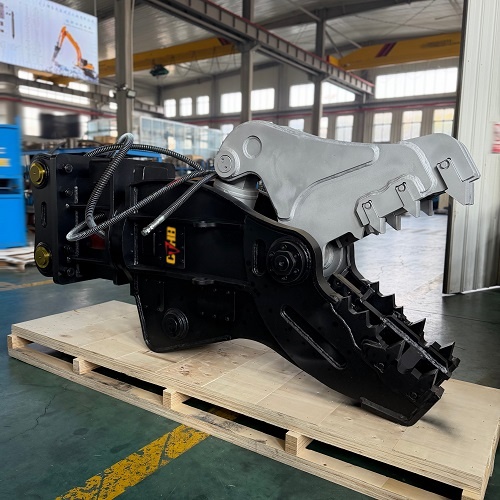

Excavator Hydraulic Rotating Pulverizer
CTHB excavator hydraulic pulverizer (also known as concrete pulverizer) is a highly efficient excavator attachment designed for secondary demolition.It can both break up reinforced concrete structures and separate the steel bars. Very popular at demolition sites, it is extremely help with recycling projects. Its compact and durable design makes it an ideal tool for demolition work.Its core structure consists of a clamp body, a hydraulic cylinder, a movable jaw, and a fixed jaw.The jaws open and close via hydraulic drive, efficiently crushing objects.
The improved version of the CTHB pulverizers is equipped with the CT hydraulic system, featuring a unique cylinder technique (with a patent valve) that provides 25% more power and exceptionally fast cycle times.

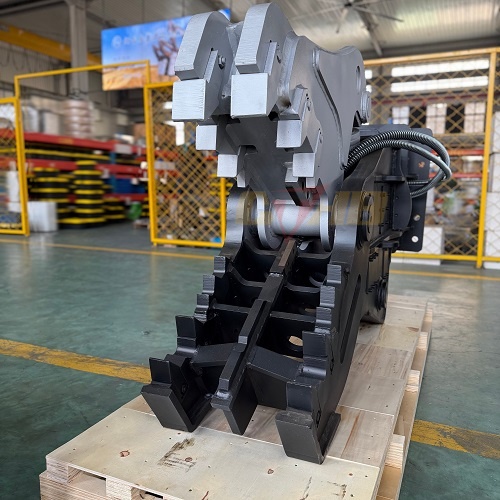

NM steel-made tooth ensures remarkable penetration into the concrete. Both teeth in the upper and down jaw are positioned in the right place to optimize the separation of reinforced steel from the concrete.
It integrates a 360-degree fully hydraulic rotary motor, allowing for flexible adjustment of the clamping angle.All wear parts can be easily changed on-site, eliminating the cost of transporting the pulverizer to a workshop. CTHB pulverizers are supplied with cutting blades at the throat, allowing for cutting reinforcing steel bars from the concrete.

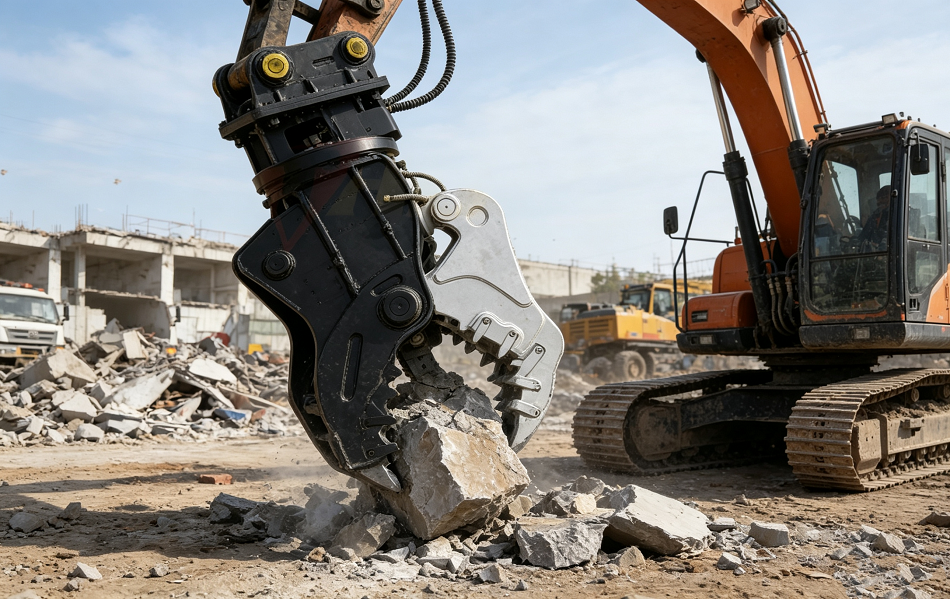

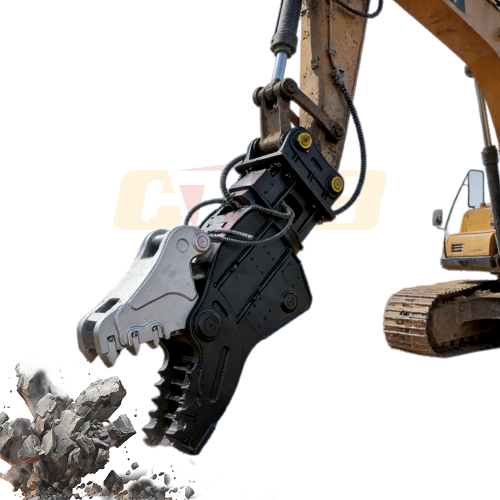

360° all-around high-efficiency crushing, one-click separation of steel and concrete
Specification
| Model | Unit | HRP400 | HRP600 | HRP800 | HRP1000 |
| Excavator Class | ton | 6-11 | 12-17 | 18-26 | 27-38 |
| Pulverizer Weight | kg | 630 | 1600 | 2456 | 2600 |

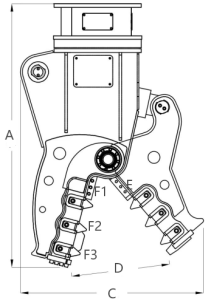

| Dimension A | mm | 1480 | 1830 | 2050 | 2360 |
| Dimension B | mm | 500 | 580 | 690 | 732 |
| Dimension C | mm | 960 | 1235 | 1370 | 1617 |
| Dimension D | mm | 510 | 735 | 800 | 900 |
| Dimension E | mm | 130 | 160 | 180 | 200 |
| Rapid Traverse Valve | opt. | opt. | opt. | opt. | |
| Cutting Force F1 | ton | 120 | 200 | 240 | 300 |
| Closing Force at the Rear F2 | 80 | 140 | 154 | 200 | |
| Closing Force at the Front F3 | 35 | 60 | 146 | 80 | |
| Numbers of Motor | pcs | 1 | 1 | 1 | 1 |
| Rotation Oil Hose Size | inch | 3/8 | 3/8 | 3/8 | 3/8 |
| Cylinder Oil Hose Size | inch | 1/2 | 3/4 | 3/4 | 1 |
| Operating Rotation Pressure | bar | 70 | 70 | 70 | 70 |
| Operating Cylinder Pressure | l/min | 10-15 | 15-20 | 18-25 | 20-25 |
| Rotation Oil Flow | bar | 250-280 | 280-320 | 320-350 | 320-350 |
| Cylinder Oil Flow | l/min | 50-70 | 70-120 | 150-200 | 150-200 |
*This specification may be changed without notice for performance improvement.
*Customization available.
Key Features and Benefits
1.The working efficiency is 3-5 times higher than the traditional hydraulic breaker;
2. Larger opening, larger bite force, smaller bite gap;
3. Adopt high strength, light and wear-resisting manganese plate, long working life;
4. Easy to disassemble and install, unique oil circuit design, fast cylinder speed;
5. Flexible and convenient operation, low noise and no vibration.
