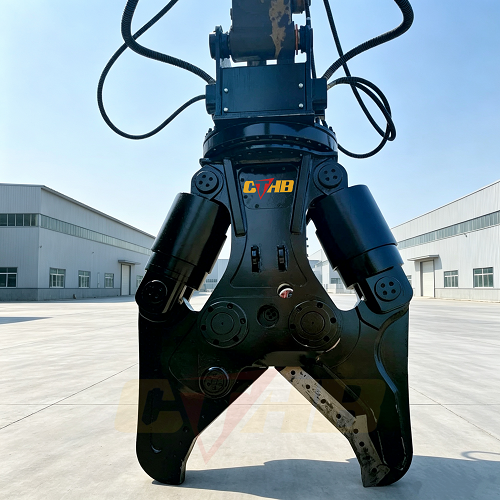

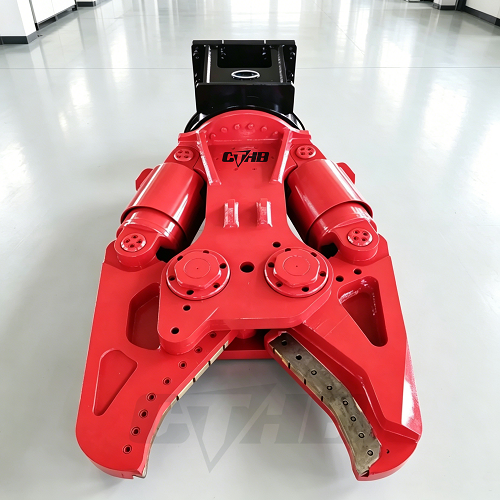

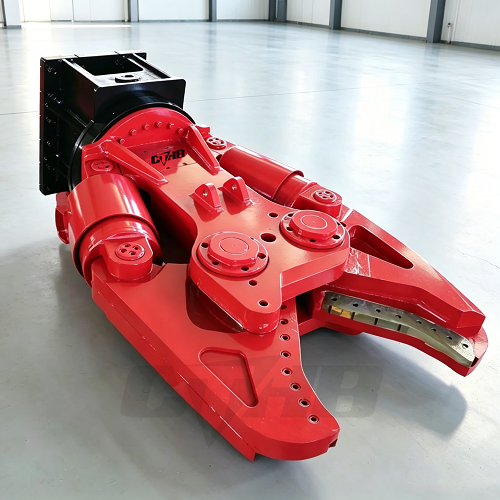

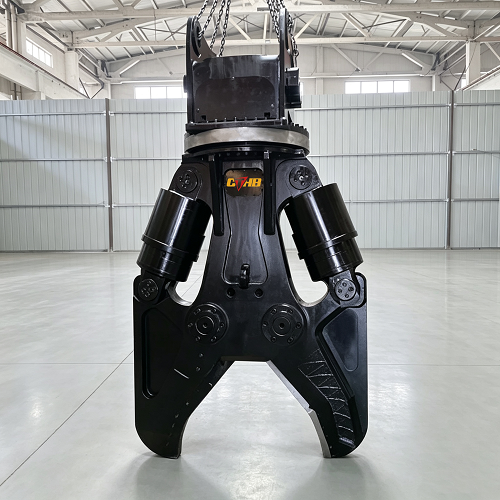

Double Cylinder Rotating Hydraulic Scrap Shear

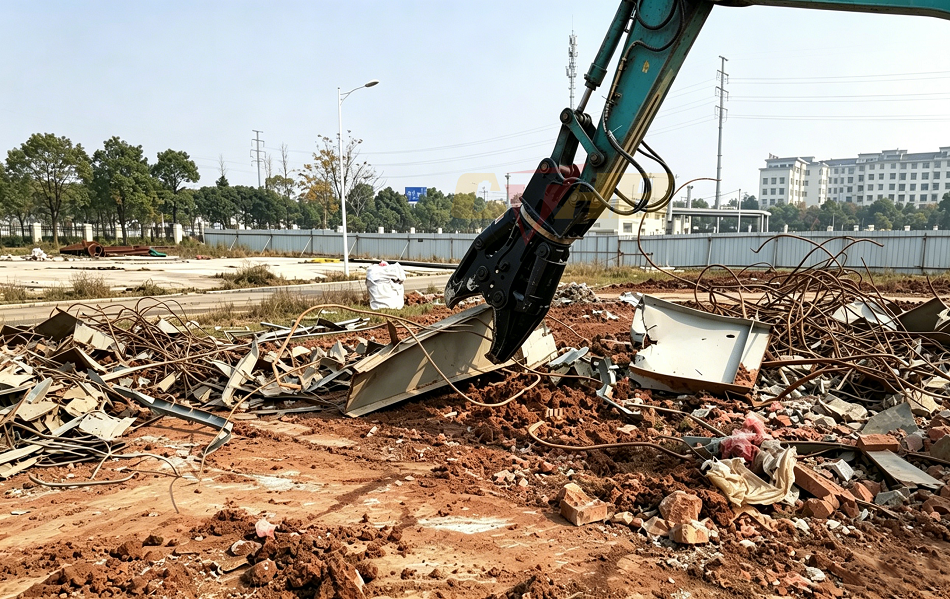

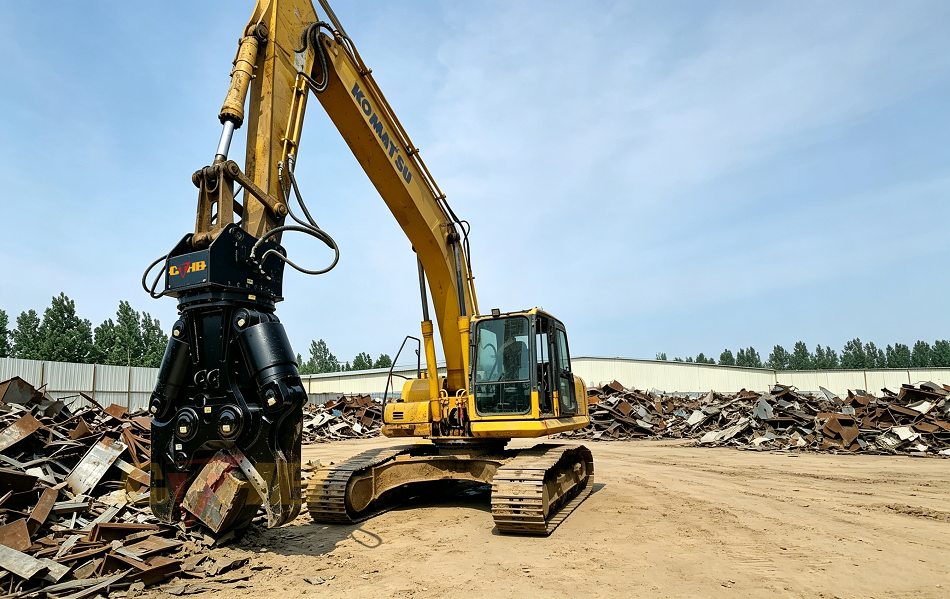

CTHB Double-cylinder scrap shear is a heavy-duty excavator attachment designed for scrap recycling, end-of-life vehicle dismantling, steel structure demolition, and heavy-duty metal cutting operations.
Powered by two synchronized high-pressure hydraulic cylinders, the unit delivers balanced, immense cutting force while eliminating issues associated with uneven, one-sided loading.
All models feature 360° continuous hydraulic rotation, enabling flexible, multi-angle cutting without the need to reposition the carrier machine.
“Dual-cylinder drive, cracking rocks and breaking gold; scrap steel recycling, efficient operation.”
Specification

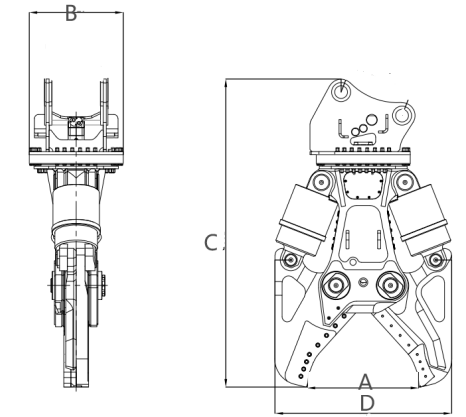

| Specifications/Model | Unit | CTHB-04 | CTHB-06 | CTHB-08 | CTHB-10 |
| Products Weight | kg | 670 | 1050 | 2850 | 3850 |
| Max Opening A | mm | 500 | 786 | 853 | 1180 |
| Width B | mm | 410 | 660 | 720 | 890 |
| Height C | mm | 1400 | 1859 | 2362 | 2780 |
| Width D | mm | 894 | 1284 | 1353 | 1480 |
| Cutting Force | ton | 100 | 130 | 152 | 330 |
| Operating Pressure | bar | 210 | 250 | 320 | 320 |
| Oil Flow | l/min | 170-210 | 180-220 | 220-240 | 260-280 |
| Suitable Excavator Weight | ton | 5-9 | 10-17 | 18-24 | 25-35 |
*This specification may be changed without notice for performance improvement.
*Customization available.
Key Features and Benefits
- Synchronized double-cylinder output delivers balanced, powerful cutting force.
- Forged, wear-resistant main body featuring a full-blade design with replaceable blades.
- 360° rotation to meet diverse operational needs.
