Excavator Pulverizer

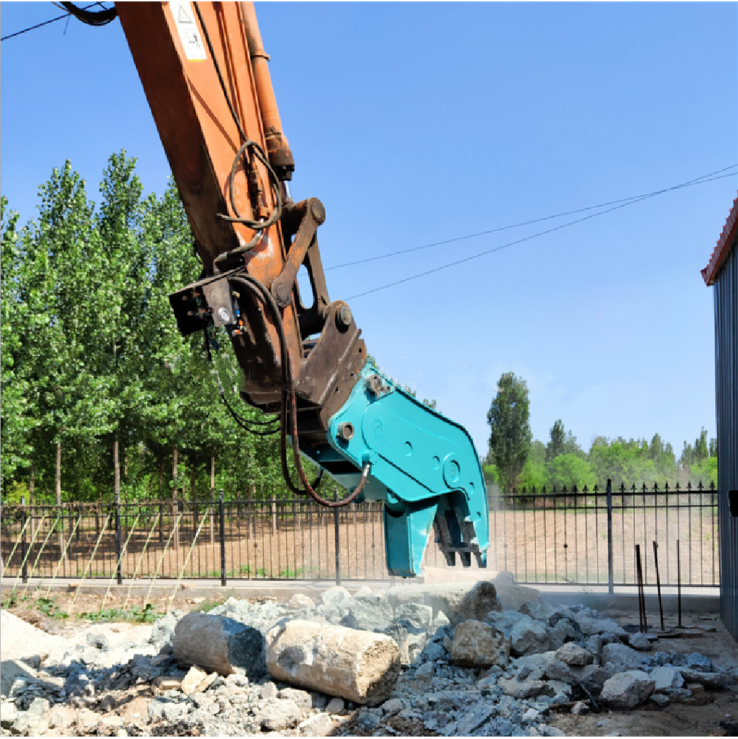

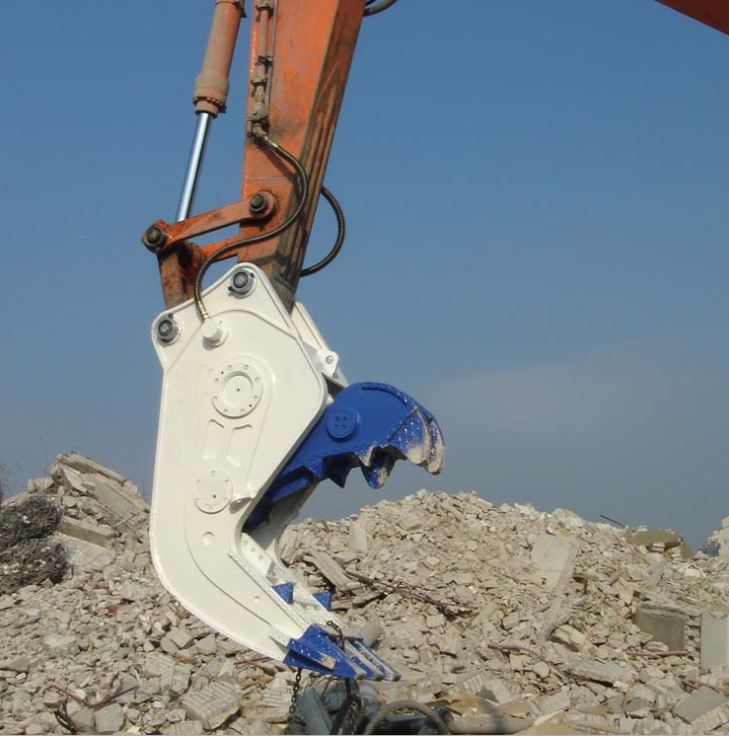

CTHB hydraulic pulverizers are designed for secondary demolition,which can both break up reinforced concrete structures and separate the steel bars. Very popular at demolition sites, it is extremely help with recycling projects.

The improved version of the CTHB pulverizers is equipped with the CT hydraulic system, featuring a unique cylinder technique (with a patent valve) that provides 25% more power and exceptionally fast cycle times.

NM steel-made tooth ensures remarkable penetration into the concrete. Both teeth in the upper and down jaw are positioned in the right place to optimize the separation of reinforced steel from the concrete.

All wear parts can be easily changed on-site, eliminating the cost of transporting the pulverizer to a workshop. CTHB pulverizers are supplied with cutting blades at the throat, allowing for cutting reinforcing steel bars from the concrete.

A 360-degree rotating version is also available…..

“Breaking Barriers, Crafting Results: Hydraulic Concrete Pulverizer – Powering Your Concrete Solutions!”

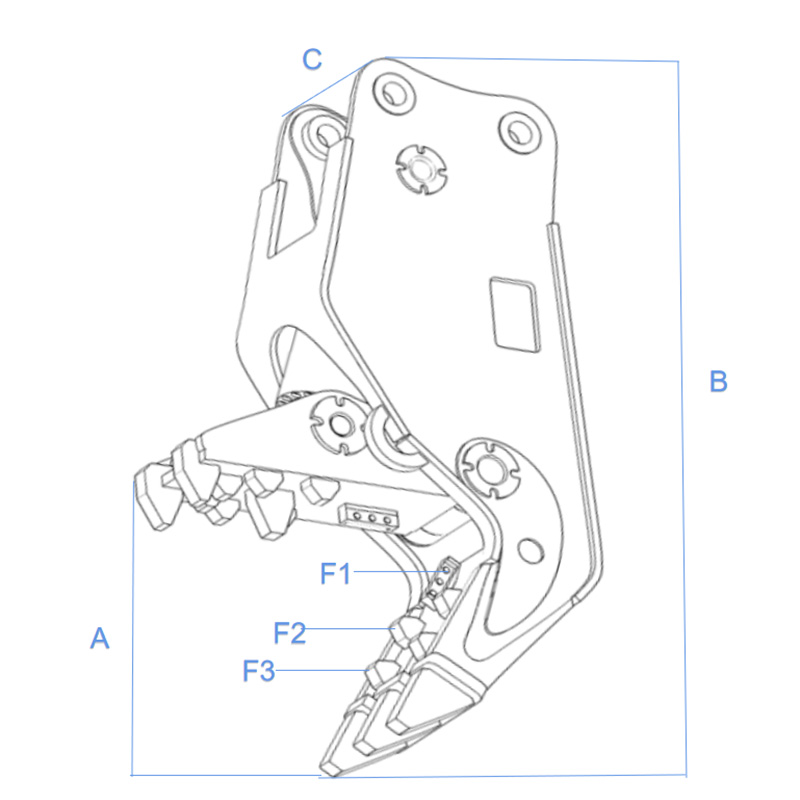

Specification

Category Unit CTHB02FP CTHB04FP CTHB06FP CTHB08FP CTHB10FP
Opening Width – A (MAX.) mm 425 550 670 835 955
Length – B mm 1241 1473 2333 2290 3150
Width – C mm 380 570 670 736 836
Crushing Force – F1 ton 60 90 155 170 220
Crushing Force – F2 ton 40 65 100 130 150
Crushing Force – F3 ton 25 45 65 80 90
Working Pressure bar 205 225 255 320 320
Operating Oil Flow L/min 30-45 80-120 120-180 150-200 200-300
Suitable Carrier Weight ton 3—5 6—9 10—17 18—28 30—40
Pulverizer Weight Kg 350 550 950 1596 2350
Category Unit CTHB02FP CTHB04FP CTHB06FP CTHB08FP CTHB10FP
Opening Width – A (MAX.) inch 17 22 27 33 37
Length – B inch 50 59 28 90 101
Width – C inch 15 22 26 29 33
Crushing Force – F1 ton 60 90 155 170 220
Crushing Force – F2 ton 40 65 70 85 110
Crushing Force – F3 ton 25 45 55 60 85
Working Pressure psi 2,973 3,263 3,698 4,640 4,640
Operating Oil Flow gal/min 13-21 26-37 32-48 40-53 53-79
Suitable Carrier Weight lbs 6,612-11,020 13,224-19,836 22,046-37,478 39,683-61,729 66,138-88,184
Pulverizer Weight lbs 728 1,216 2,094 3,519 5,181

*This specification may be changed without notice for performance improvement.
*Customization available.

Excavator Pulverizer (6)

Key Features and Benefits
  • CTHB Pulverizer offers various teeth types, we can equip your non-fixed jaw with single teeth, double teeth, and metal blades in the throat part.
  • Pivot point with heat treatment.
  • Exchangeable cutting edges (optional).
  • Tooth plate weld with wear-resistant welding wire.
