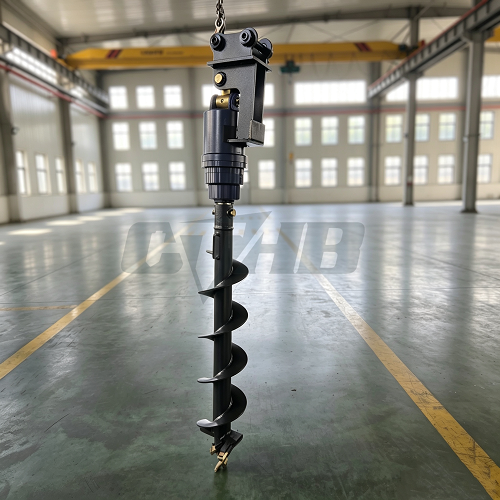

Hydraulic Earth Auger Drill
CTHB hydraulic auger drills are applied to drill holes in the soil, frozen soil, and ground. Based on these drilling functions, it is widely used for digging holes for fence posts, deck footings, tree planting, solar foundations, and other landscaping projects.

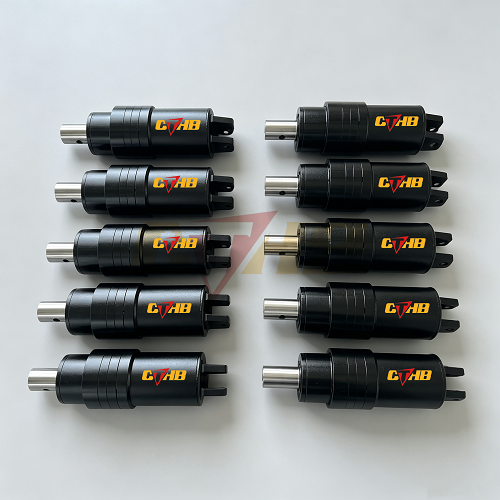

It is mainly composed of the motor unit, connection head, Auger drill bits, and extension rod. Our motor units have a gearbox and rotating motor, the hydraulic auger motor connected to the gearbox significantly increases the torque of the earth auger attachment. This also prevents the motor from damage when against the rock during drilling.

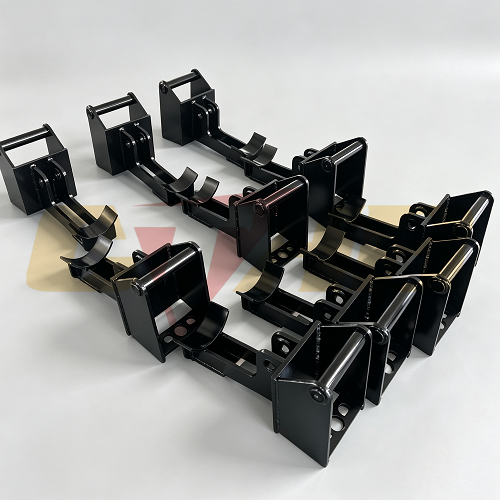

Our hydraulic digger drills can be mounted on excavators, skid steer loaders, and tractors by different connection adaptors. CTHB offers earth augers for machines weighted from 1.5 tons to 80 tons…..
“Precision in Every Turn, Power in Every Dig.”
Specification
| Model | Unit | CTHB2000 | CTHB3000 | CTHB3500 | CTHB4500 | CTHB6000 | CTHB7000 | CTHB8000 | CTHB15000 | CTHB20000 | CTHB25000 | CTHB50000 | CTHB65000 | CTHB80000 |
| Suitable Machine Weight | tons | 1.5-3 | 2-4.5 | 2.5-4.5 | 3-5.5 | 4-6 | 6-8 | 6-10 | 10-15 | 15-20 | 15-25 | 20-45 | 30-55 | 45-80 |
| Torque（MAX） | Nm | 2000 | 3000 | 3500 | 4500 | 6000 | 8000 | 9000 | 15000 | 20000 | 30000 | 50000 | 65000 | 80000 |
| Operating Pressure | Bar | 60-240 | 70-240 | 70-240 | 70-240 | 80-240 | 80-240 | 80-240 | 80-240 | 80-240 | 80-310 | 80-360 | 120-450 | 150-550 |
| Oil Flow | I/min | 20-70 | 25-70 | 25-75 | 20-80 | 50-85 | 50-85 | 50-95 | 60-150 | 75-170 | 75-180 | 75-240 | 75-240 | 75-240 |
| Input Diameter | mm | 35 hex | 65 round | 65 round | 51 hex | 75 square | 75 square | 75 square | 75 square | 75 square | 75 square | 110 square | 110 square | 130 square |
| Drive Unit Diameter | mm | 190 | 232 | 232 | 238 | 245 | 272 | 280 | 338 | 345 | 355 | 420 | 420 | 420 |
| Drilling Diameter Range | mm | 50-300 | 100-400 | 100-400 | 100-450 | 100-600 | 200-800 | 200-800 | 300-1000 | 300-1200 | 300-1500 | 300-1500 | 300-1500 | 300-1500 |
| Rotating Speed （MAX） | r/min | 82 | 75 | 72 | 70 | 60 | 55 | 55 | 50 | 45 | 45 | 40 | 35 | 30 |
| Drive Unit Weight | kg | 28 | 62 | 64 | 78 | 134 | 136 | 170 | 240 | 272 | 320 | 540 | 570 | 750 |
| Model | Unit | CTHB2000 | CTHB3000 | CTHB3500 | CTHB4500 | CTHB6000 | CTHB7000 | CTHB8000 | CTHB15000 | CTHB20000 | CTHB25000 | CTHB50000 | CTHB65000 | CTHB80000 |
| Suitable Machine Weight | lbs | 3,300-6,610 | 4,410-9,920 | 5,511-9,920 | 6,615-12,125 | 8,820-13,250 | 13,250-17,640 | 13,250-22,050 | 22,050-33,070 | 33,070-44,090 | 33,070-55,115 | 44,090-99,200 | 66,140-121,250 | 99,210-176,370 |
| Torque（MAX） | Nm | 2000 | 3000 | 3500 | 4500 | 6000 | 8000 | 9000 | 15000 | 20000 | 30000 | 50000 | 65000 | 80000 |
| Operating Pressure | psi | 870-3,480 | 1,015-3,480 | 1,015-3,480 | 1,015-3,480 | 1,160-3,480 | 1,160-3,480 | 1,160-3,480 | 1,160-3,480 | 1,160-3,480 | 1,160-4,496 | 1,160-5,221 | 1,740-6,527 | 2,176-7,977 |
| Oil Flow | gal/min | 5-18 | 7-18 | 7-20 | 5-21 | 13-22 | 13-22 | 13-25 | 16-40 | 20-45 | 20-48 | 20-63 | 20-63 | 20-63 |
| Input Diameter | inch | 1.4 hex | 2.6 round | 2.6 round | 2 hex | 3 square | 3 square | 3 square | 3 square | 3 square | 3 square | 4.3 square | 4.3 square | 5.1 square |
| Drive Unit Diameter | inch | 7.5 | 9.1 | 9.1 | 9.4 | 9.6 | 10.7 | 11 | 13.3 | 13.6 | 14.0 | 16.5 | 16.5 | 16.5 |
| Drilling Diameter Range | inch | 2-12 | 4-16 | 4-16 | 4-18 | 4-24 | 8-31 | 8-31 | 12-39 | 12-47 | 12-59 | 12-59 | 12-59 | 12-59 |
| Rotating Speed （MAX） | r/min | 82 | 75 | 72 | 70 | 60 | 55 | 55 | 50 | 45 | 45 | 40 | 35 | 30 |
| Drive Unit Weight | lbs | 62 | 137 | 141 | 172 | 295 | 300 | 375 | 529 | 600 | 705 | 1190 | 1257 | 1653 |
*This specification may be changed without notice for performance improvement.
*Customization available.

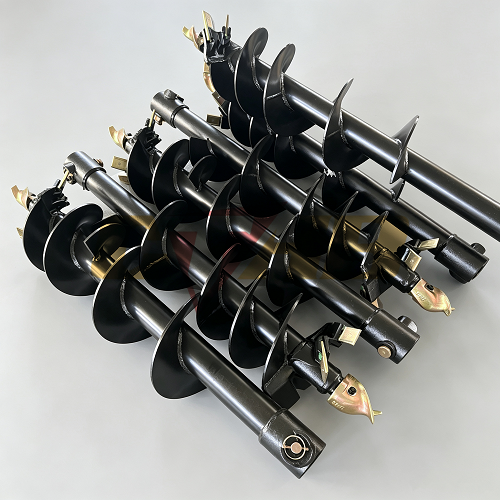

- Various drill bits: we have standard soil drill bits for good soil condition ground and rock drill bits for the ground with rock under it.
- Self-stop drill units: our drill unit will automatically stop when there are hard rocks to prevent the motor from damage.
- Full-closed design: prevents the motor from damage by dirt and protects the machine’s hydraulic system.
- Extension rod is optional for the deeper hole drilling tasks, we produce the extension rod based on the real task demand.
