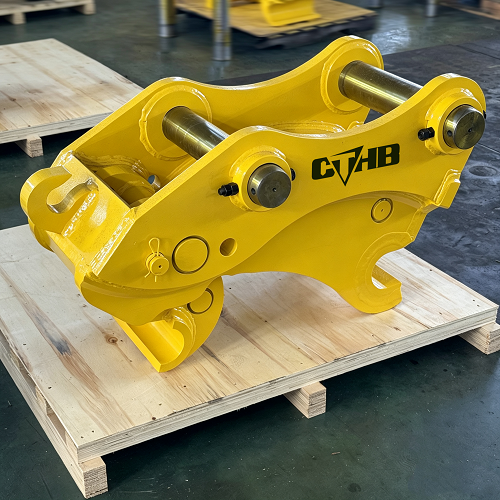

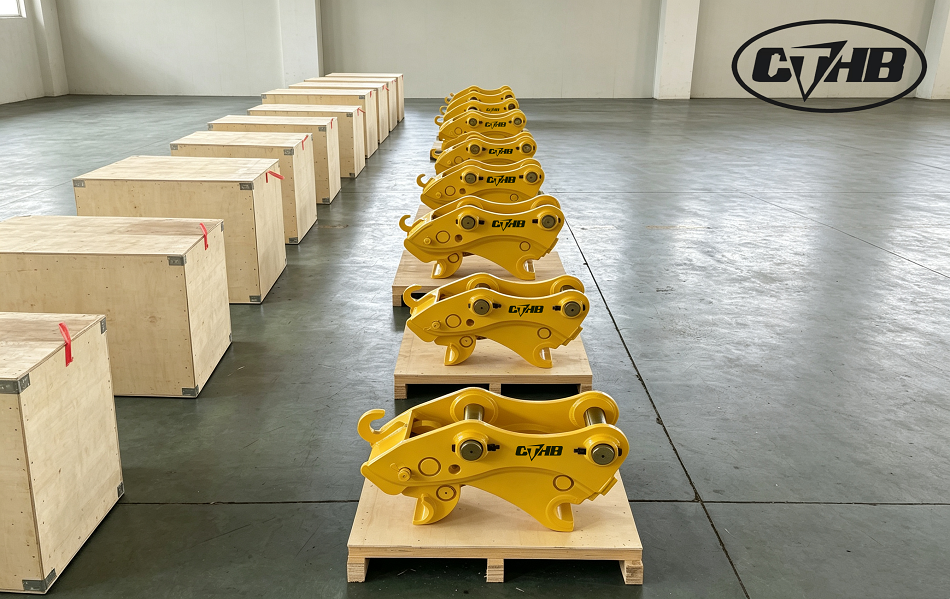

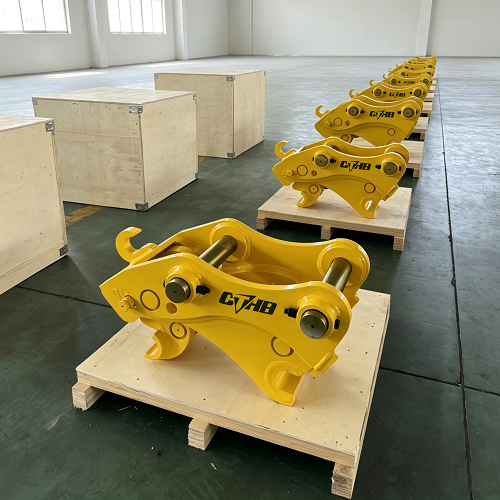

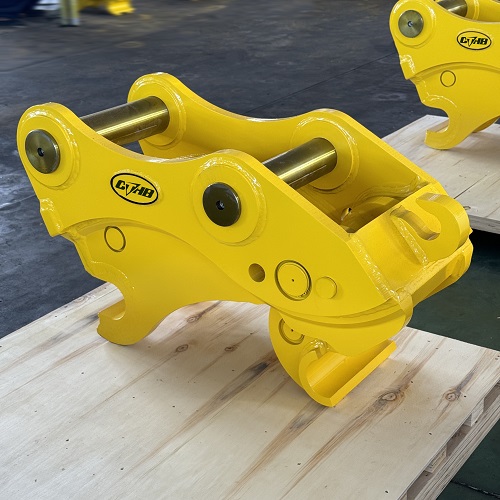

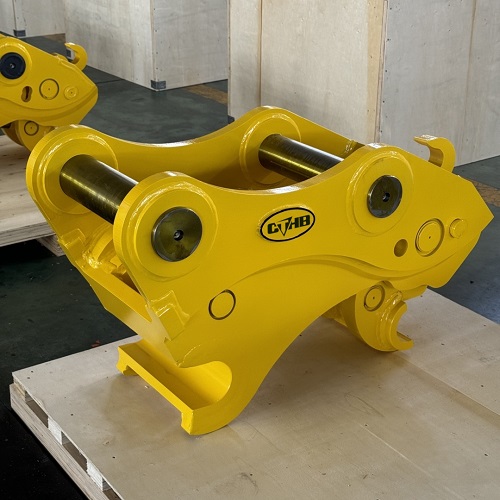

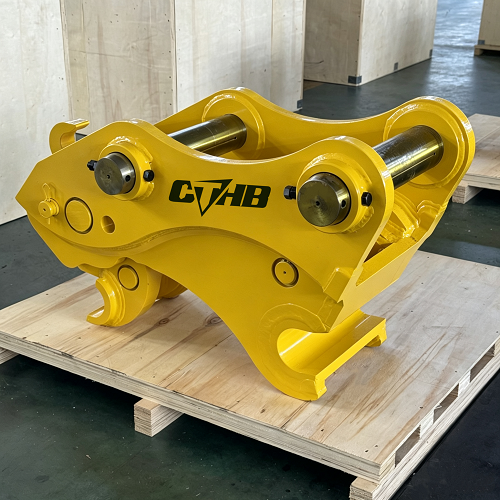

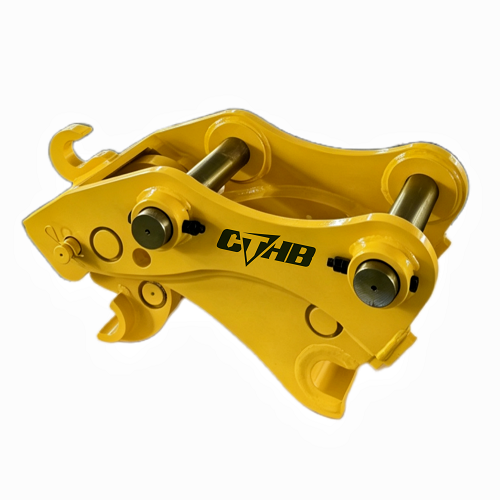

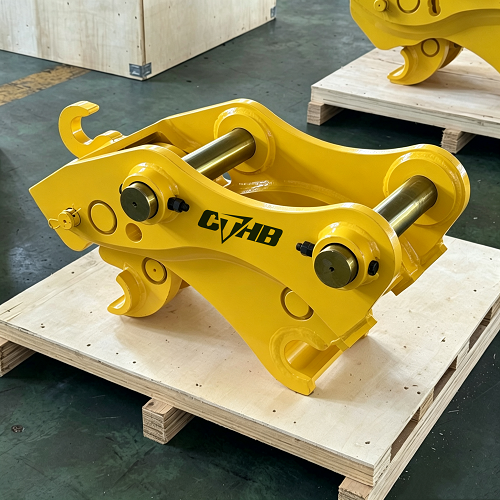

Excavator Hydraulic Quick Hitch
Excavator quick hitch is designed to enable operators to rapidly and conveniently switch between various tools or attachments (such as buckets, hydraulic breakers, and grapples). The excavator quick hitch is equipped with a hydraulic cylinder that utilizes the cylinder’s extending and retracting action to perform coupling and uncoupling; operators can control this process via a switch inside the excavator cab.
They eliminate the strenuous manual labor—such as hammering pins or removing and installing retaining pins—previously required for component changes, thereby enhancing the excavator’s versatility and productivity while minimizing downtime during tool swaps.
Safe Switch, Maximum Output.
One Cab Click, All Attachments Ready.
Specification
| Model | Shaft Diameter(mm) | Suitable Excavator(ton) |
| CTHB Mini | 25/40 | 0.8-3 |
| CTHB02 | 40/45 | 3-6 |
| CTHB04 | 50/55 | 7-9 |
| CTHB06 | 60/65 | 11-17 |
| CTHB08 | 70/80 | 18-23 |
| CTHB10 | 90 | 24-30 |
| CTHB14 | 100 | 32-38 |
*This specification may be changed without notice for performance improvement.
*Customization available.
- Dual safety locking, integrated leak-free hydraulic circuit;
- Wear-resistant steel construction, intelligent cab control functions;
- High safety, long service life, fast attachment replacement, and low long-term maintenance costs.
