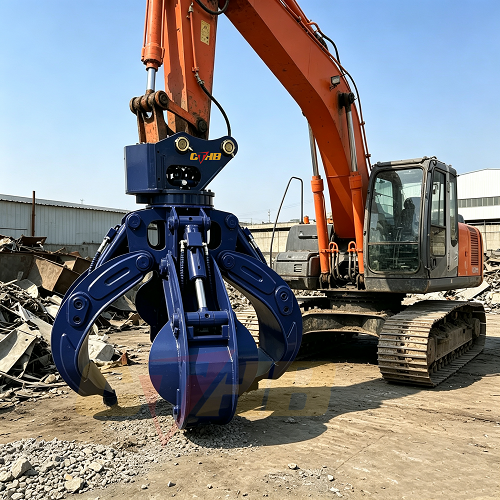

Excavator Hydraulic Lotus-Style Scrap Grab

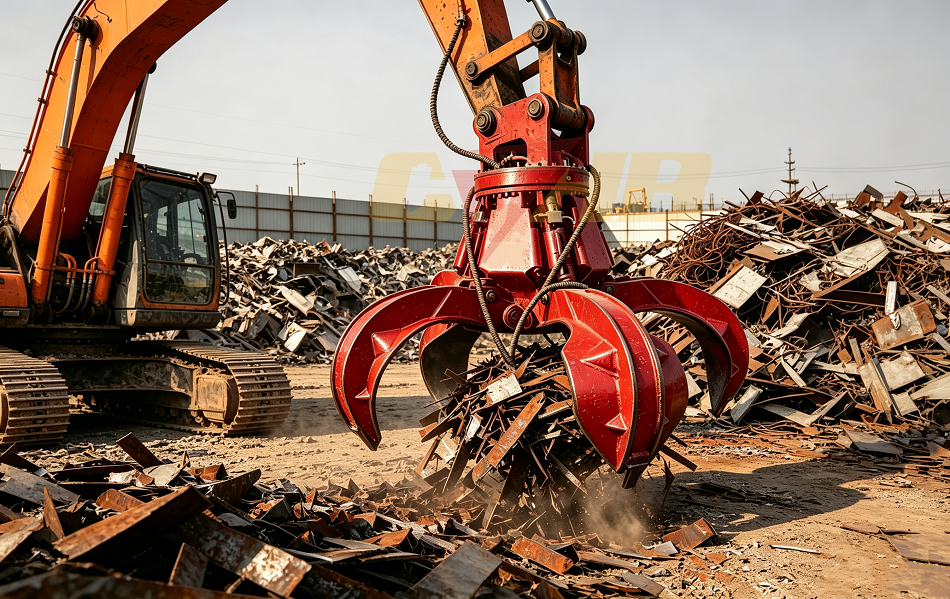

CTHB Hydraulic Lotus-Style Scrap Grab (Orange Peel Scrap Grab),also named orange peel multi-petal grapple, is heavy-duty hydraulic attachment designed for scrap metal recycling, steel mill loading & demolition waste sorting.

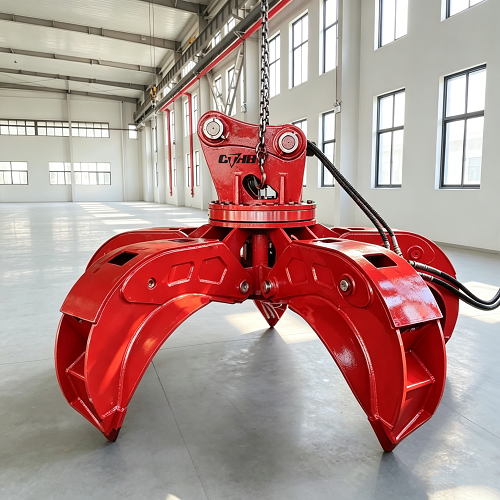

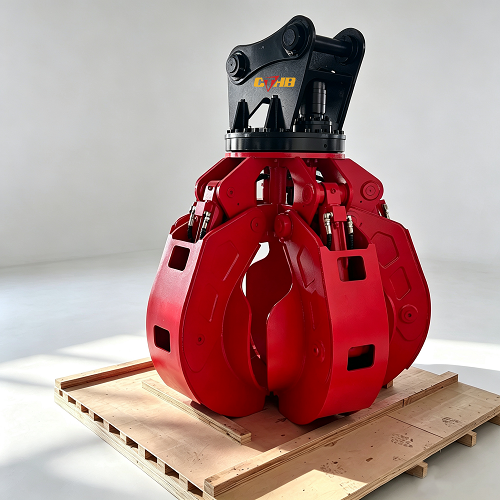

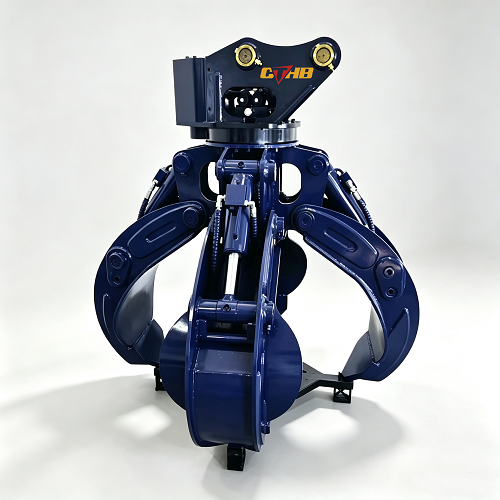

Adopting bionic multi-petal structure with 4 to 5 independent hydraulic tines.The main body is made of high wear-resistant steel, built-in protected cylinders with hydraulic cushion, and 360° hydraulic rotation.
Uniform wrapping design greatly improves material filling rate and avoids falling loose scrap. Modular tines & wear edges cut long-term maintenance cost.
Widely matched with 6–35ton excavators & material handlers for scrap steel, ELV dismantling, construction debris, port bulk waste handling.
“Versatile gripper—handling it all”
“Powerful hydraulic core—effortless gripping”
Specification
|
Item/Model
|
Unit
|
CTHB400A
|
CTHB600A
|
CTHB800A
|
CTHB1000A
|
|
No. of Jaws
|
–
|
4/5
|
4/5
|
4/5
|
4/5
|
|
Suitable Excavator
|
ton
|
6-9
|
10-17
|
18-25
|
27-35
|
|
Weight
|
kg
|
355
|
900
|
1700
|
2000
|
|
Opening Width (Max)
|
mm
|
1500
|
1600
|
2000
|
2200
|
|
Working Pressure
|
bar
|
200
|
260
|
260
|
320
|
|
Working Flow
|
lpm
|
50-100
|
60-120
|
200-250
|
200-250
|
|
Capacity
|
m³
|
0.3
|
0.4
|
0.8
|
1
|
*This specification may be changed without notice for performance improvement.
*Customization available.
- Built with NM stell which is light in weight and excellent in wear resistance.
- Among the same products,it has the largest grabbing force and widest grabbing range.
- Built-in cylinder and high-pressure hose.
- Closed oil circuit,protect the hose and longer the service life.
