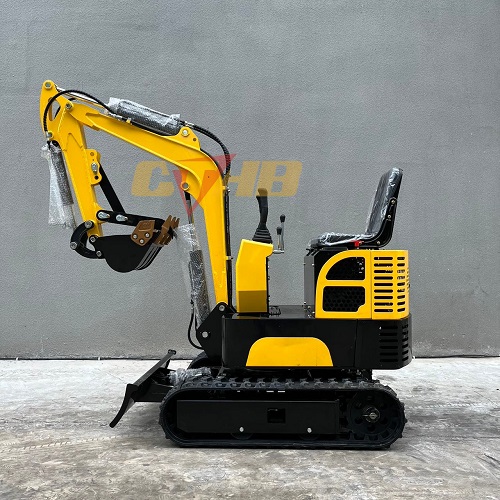

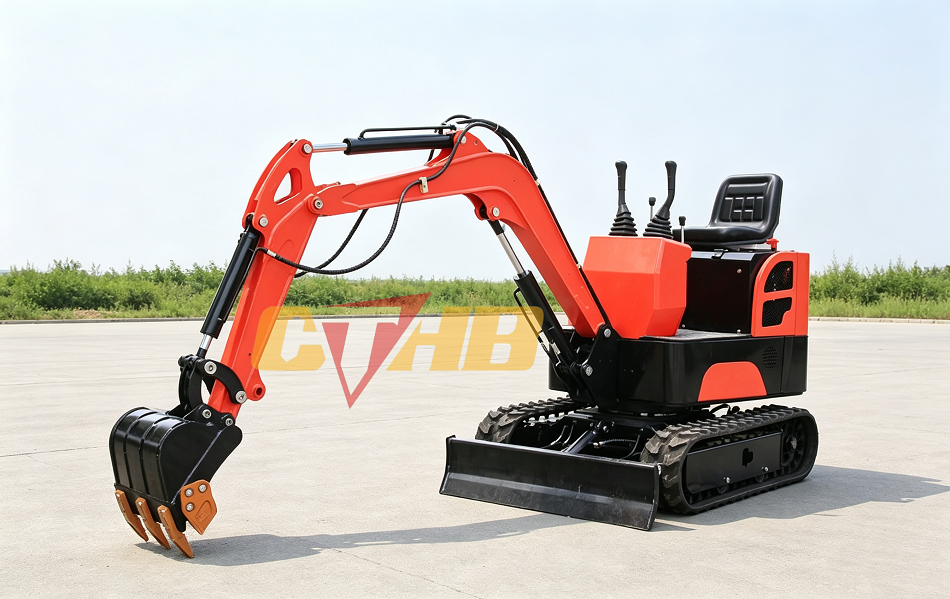

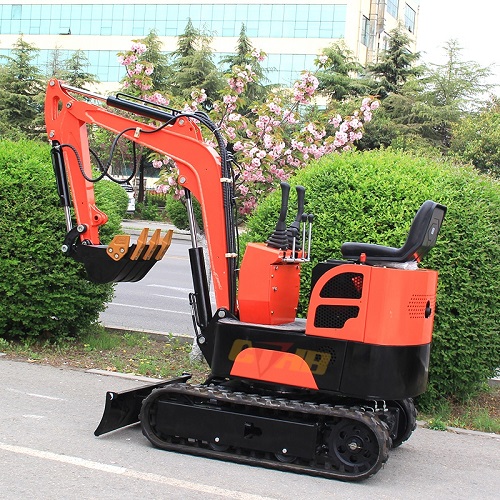

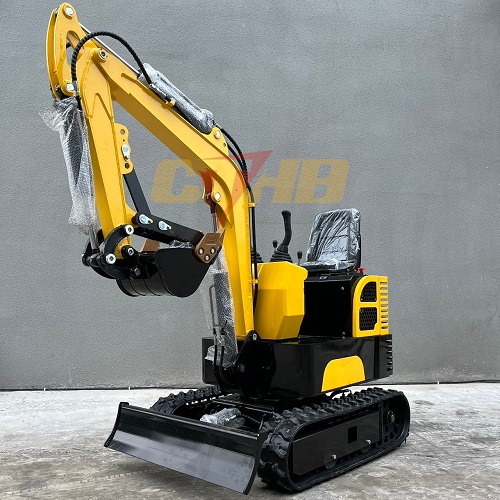

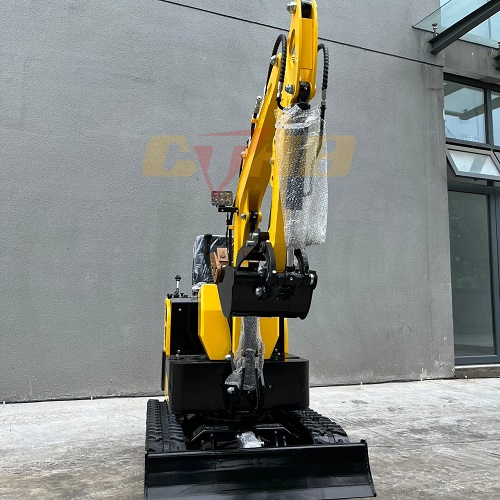

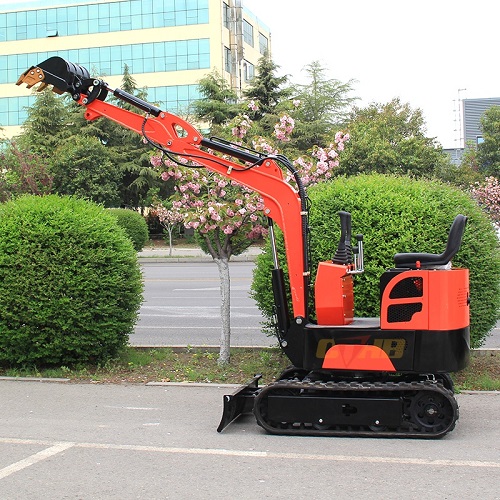

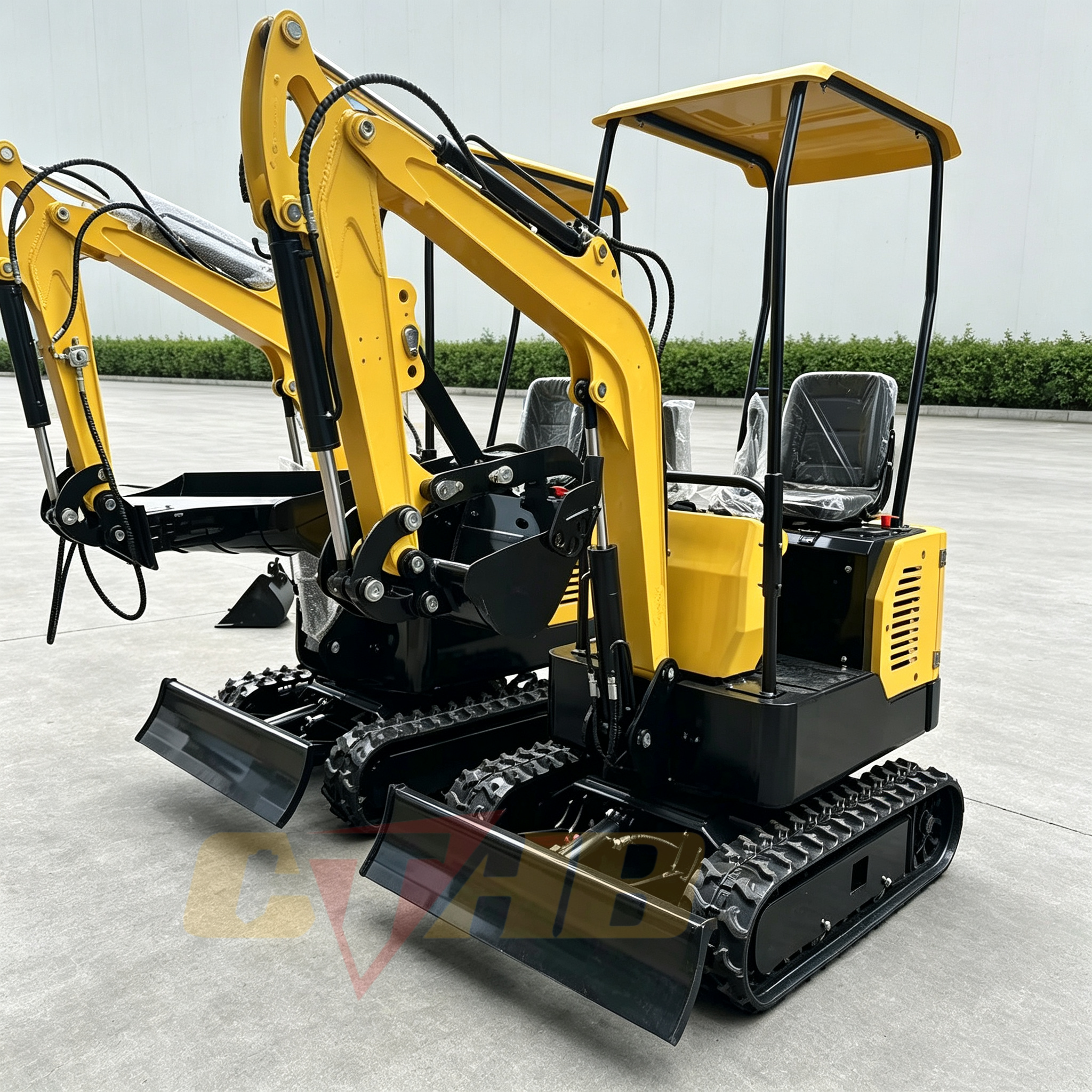

CTHB 0.8ton Mini Excavator
CTHB Mini Excavator (Minimal Tail-Swing). The chassis on these excavators extends only a few centimetres beyond the width of the undercarriage.
Similar to the zero-tail swing excavators,this mini excavator can be used in confined spaces and generally they will provide better lifting capacity, greater efficiency and operator comfort due to a longer tail radius.
If you are looking for a mini excavator that works well in tight spaces and offers more lift capacity than a than a zero- tail swing, then this mini excavator might be the right choice for you. As with the zero tail swing, properly matched attachments in size and weight are important items to consider.
Compact body, powerful performance—operate with ease in tight spaces.
Specification
| Basic performance parameters | Working weight (kg) | 800 |
| Bucket capacity（m³） | 0.022 | |
| Travel speed low/high（km/h | 3 | |
| Climbing capacity(°) | 30 | |
| Arm digging force (KN) | 7.2 | |
| Maximum excavation force(KN) | 9.2 | |
| Emissions Tier Option | EPA /Euro 5 /Tier 2/Tier 4 | |
| Max dig depth (mm) | 1700 | |
| Max excavation height (mm) | 2580 | |
| Max dump height (mm) | 1745 | |
| Max reach at ground level (m） | 2 | |
| Body | Transportation length (mm) | 2870 |
| Transport width (mm) | 880 | |
| Transport height (mm) | 2030 | |
| Trace ground length (mm) | 1200 | |
| Trace width (mm) | 180 | |
| Fuel tank (L) | 6.5 | |
| Oil capacity (L) | 1.65 | |
| Auxiliary oil pressure (MPA) | 16 | |
| Engine | Engine brand | Changchai 192 / Koop 192 (Euro 5) /American B&S 25T2 (EPA) |
| Engine model | Changchai192 | |
| Max governed RPM (rpm) | 3000 | |
| Rated power (Kw) | 7.6 | |
| Maximum speed (rpm) | 3000 | |
| Displacement (L) | 0.5 | |
| Horse power (HP) | 10.3 | |
| Cooling method | Air-cooled | |
| Rated Power (KW) | 7.6 | |
| Fuel form | Diesel fuel | |
| Engine type | Single-Cylinder；Four-Stroke；Vertical Engine |
*This specification may be changed without notice for performance improvement.
*Customization available.
1. Piston pump load sensitive, soft and powerful action, low engine temperature, energy saving and fuel saving.
2. Double row of beads rotary support, fast speed, high efficiency, more flexible, more stable.
3. Double rotary motor, great strength, long life, soft action, comfortable and stable operation.
4. The shovel is widened and thickened to be durable.
5.Extended track length, increase the ground area, more stable walking. Tailless rotation, flexible and convenient.
6. Operation lever, simple and flexible, easy to operate.
