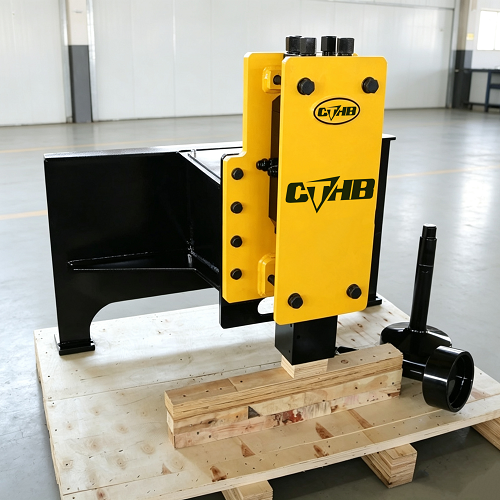

Skid Steer Loader Post Hammer
CTHB skid steer loader post driver, also known as skid steer post pounder, post rammer, or fence driver, is an attachment that is mounted on the skid steer loaders and uses its hydraulic pressure to pound posts into the ground. It widely applies in farm fencing, road guard rail piling, and photovoltaic piles.
Our advantage is that we use a hydraulic breaker power cell as the power unit, high frequency could drive the post into the ground quickly.
The piling driver can pile any different diameter of the post by customizing the post chisel tool’s internal diameter. Every cup chisel is made with forged steel material, not broken easily, and is durable.
“Powerful and Flexible Skid Steer Piling Tool”
Specification
| Model No. | Chisel Diameter | Suitable Skid Steer Loader | Operating Pressure | Operating Oil Flow | Blow Frequency | Oil Hose Diameter | Breaking Power | Auto Grease System | Back Cylinder N2 Gas Pressure |
| mm | Ton | ㎏/㎠ | L/min | bpm | inch | kJ | ○ | bar | |
| CTHB30PD | 53 | 2.5-4.5 | 90-120 | 25-50 | 600-1100 | 1/2 | 0.475 | ○ | 14-17 |
| CTHB35PD | 60 | 2–5 | 90-120 | 25-50 | 600-1100 | 1/2 | 0.575 | ○ | 14-17 |
| CTHB40PD | 68 | 4–7 | 110-140 | 40-70 | 500-900 | 1/2 | 0.661 | ○ | 14-17 |
| CTHB43PD | 75 | 6–9 | 120-150 | 50-90 | 400-800 | 1/2 | 0.756 | ● | 14-17 |
| Model No. | Chisel Diameter | Suitable Skid Steer Loader | Operating Pressure | Operating Oil Flow | Blow Frequency | Oil Hose Diameter | Breaking Power | Auto Grease System | Back Cylinder N2 Gas Pressure |
| mm | Ton | ㎏/㎠ | L/min | bpm | inch | kJ | ○ | bar | |
| CTHB30PD | 2.1 | 5,500~9,900 | 1,280~1,707 | 6.6~13.2 | 600-1100 | 1/2 | 0.475 | ○ | 203-247 |
| CTHB35PD | 2.4 | 6,600~12,000 | 1,280~1,707 | 6.6~13.2 | 600-1100 | 1/2 | 0.575 | ○ | 203-247 |
| CTHB40PD | 2.7 | 8,800~16,000 | 1,565~1,991 | 10.6~18.5 | 500-900 | 1/2 | 0.661 | ○ | 203-247 |
| CTHB43PD | 3.0 | 13,300~20,000 | 1,707~2,134 | 13.2~23.8 | 400-800 | 1/2 | 0.756 | ● | 203-247 |
*This specification may be changed without notice for performance improvement.
*Customization available.
- Quickly and more effectively than the manual pounder. Our post driver can have 400-1,100 blows per minute due to different models.
- Less tip-over: we have a place to add counterweight and make the center of gravity lower to reduce the chances of tip-over.
- Durable: our bracket is made by ultra-high manganese alloy steel plate for durability
- Versatile: We offer an OEM cup chisel tool (can customize the internal diameter of the cup chisel). CTHB post rammer accommodates wood, pipe, and T-posts.
