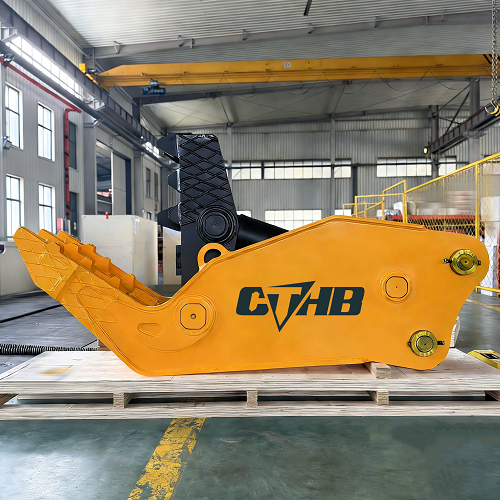

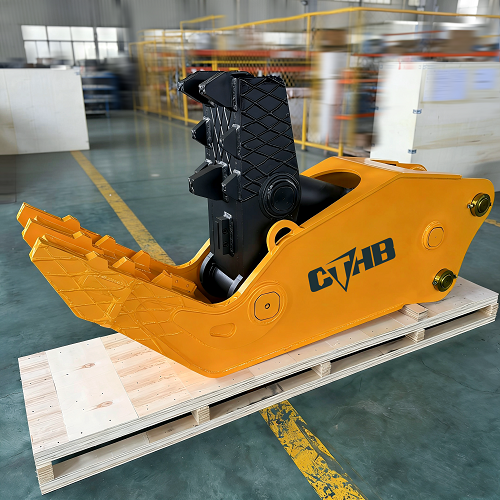

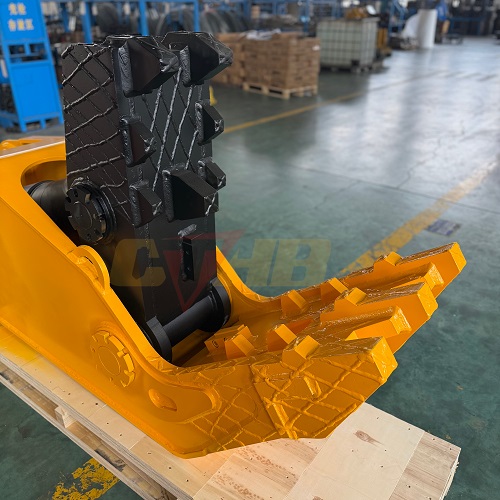

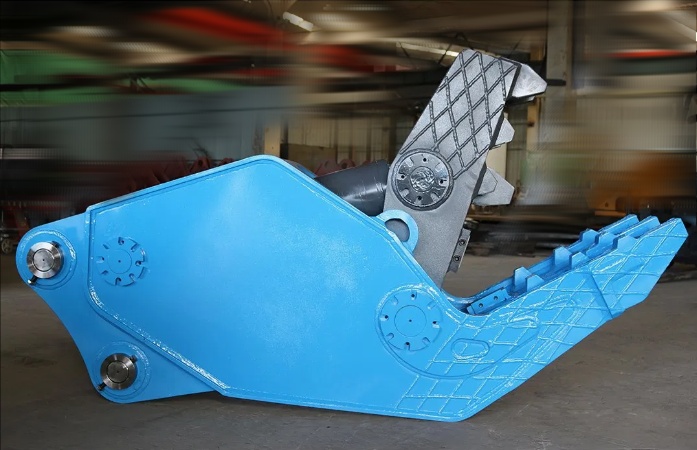

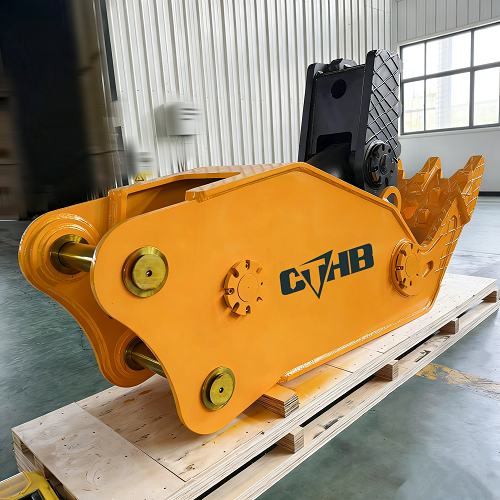

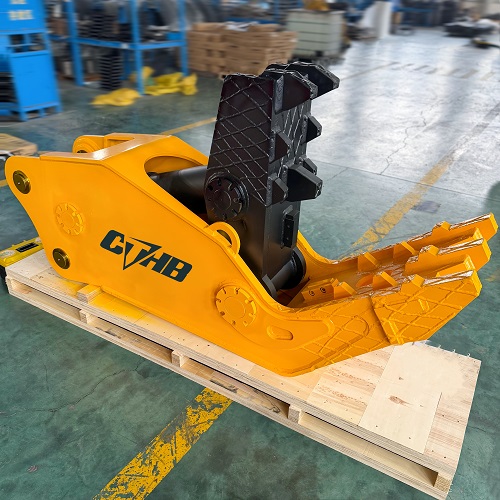

Excavator Fixed Pulverizer

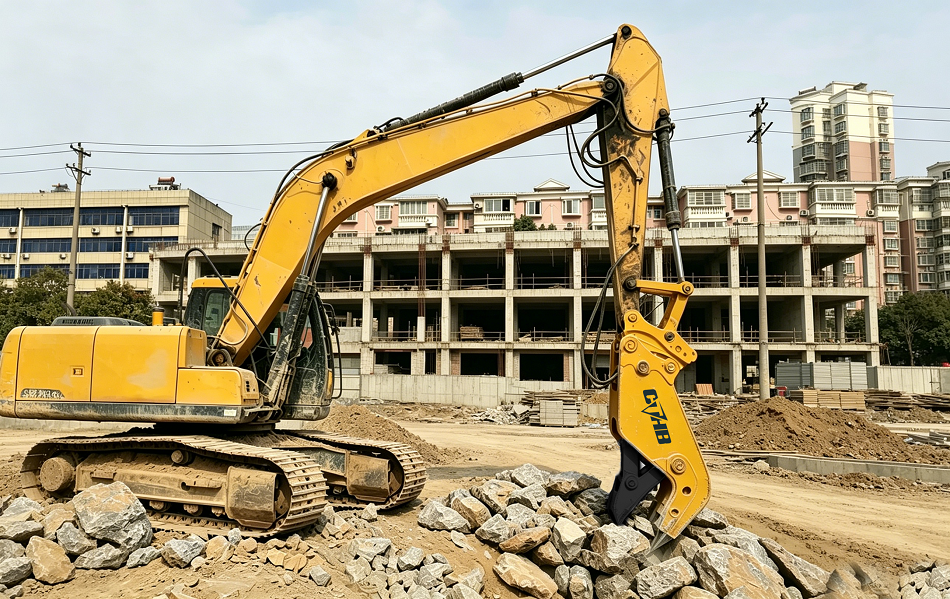

CTHB hydraulic pulverizer (also known as concrete pulverizer) is a highly efficient excavator attachment primarily used for building demolition and concrete crushing, separating concrete structures from rebars. Its compact and durable design makes it an ideal tool for demolition work.
Fixed Hydraulic Pulverizer – Heavy-Duty Secondary Crushing
Non-rotating design purpose-built for reinforced concrete secondary crushing and waste recycling—unlike rotary pulverizers for primary demolition.
One-piece forged body, jaws, and teeth from high-strength wear-resistant steel
Dual-function jaw: crushing teeth + adjustable rebar cutter
Compared to a 360-degree fully rotating pulverizer, the fixed design has a simpler structure and significantly reduces mechanical failure rate and daily maintenance costs.Fixed body eliminates hydraulic loss from rotation, ideal for stationary, continuous operation.
Dominates in C&D waste recycling, slab/beam pulverizing, rebar separation, and fixed-yard processing—delivers unbeatable efficiency and cost performance. The go-to attachment for large-scale recycling facilities.
Effortlessly crush reinforced concrete with high—efficiency demolition and breaking power!
Heavy-duty engineering and powerful drive—master the force of hardcore demolition!
Specification
| Category | Unit | FP04 | FP06 | FP08 | FP10 |
| Opening Width – A （MAX.） | mm | 424 | 600 | 904 | 980 |
| Length – B | mm | 1241 | 1770 | 2110 | 2420 |
| Width – C | mm | 380 | 570 | 580 | 800 |
| Crushing Force – F1 | ton | 60 | 90 | 170 | 340 |
| Crushing Force – F2 | ton | 40 | 65 | 130 | 260 |
| Crushing Force – F3 | ton | 27 | 45 | 80 | 120 |
| Working Pressure | bar | 205 | 225 | 320 | 320 |
| Operating Oil Flow | L/min | 30-45 | 80-120 | 150-200 | 220-280 |
| Suitable Carrier Weight | ton | 2.5-9 | 10-17 | 18-27 | 28-40 |
| Pulverizer Weight | Kg | 354 | 900 | 1596 | 2100 |
*This specification may be changed without notice for performance improvement.
*Customization available.
Key Features and Benefits
1. The working efficiency is 3-5 times higher than the traditional hydraulic breaker;
2. Larger opening, larger bite force, smaller bite gap;
3. Adopt high strength, light and wear-resisting manganese plate, long working life;
4. Easy to disassemble and install, unique oil circuit design, fast cylinder speed;
5. Flexible and convenient operation, low noise and no vibration.
